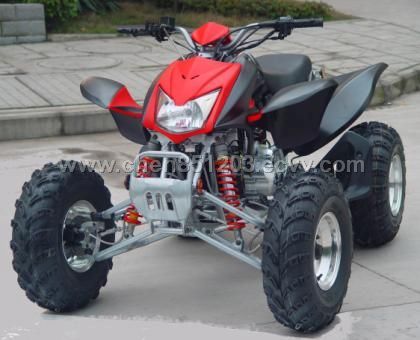

ATV200

Detailed Product Description

Length *Width * Height(mm):1520*920*1000
Wheel Base(mm):1000
Engine Type:Single Cylinder;air-cooling;four stroke
Start Mode:Electric
Power (Kw/r/min): 11.0/7500r/min
Max Torque (N.m/r/min):14/6500r/min
Max Speed(km/h):45
Mini Ground Clearance (mm):140
Dry Weight(Kg):145
Transmission Mode:Axes
Break Type(F/R):Drum/Drum
Specification:12V9Ah
Climb Degree :25
Tank Capacity L:4) Front Hanging:Arm-swing
Rear Hanging :Integral
Specification of tyre:
Front-wheel drive:19?7-8
Rear wheel:18*9.5-8
Cylinder Diameter*Journey(mm):67*55.7
Displacement (ml):196.3
Shift Gear:Four gear. One reverse gear manual clutch
Height of seats(mm):760
Mini Turning radium(mm):2400
Parking Trig:Mechanic Lock
Ignition Mode:CDI
Loading Capacity(kg):200
Engine Oil (L):1.02
Gear Wheel oil (L):0.2
Person:1
Lubrication:Press Splash
Compression Proportion:10.5*1
Gas Cylinder number: 1
Parking Dimension(mm):1485*835*770
Quantity of loading :20'GP 29 units 40'GP 64 units 40'HQ 66 units
