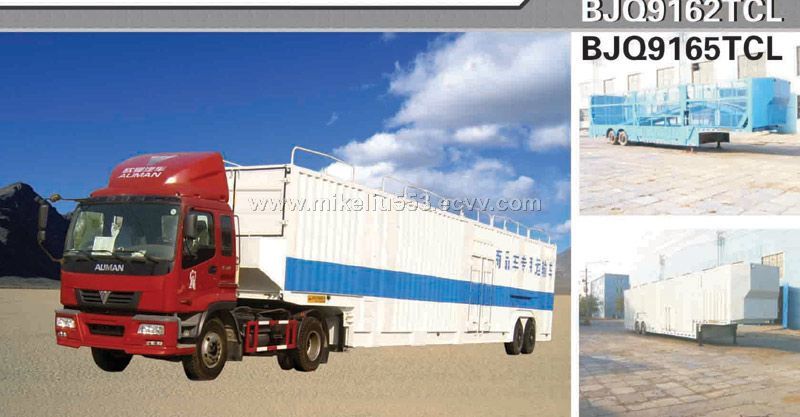

This trailer is self-developed flagship product of our company. With its unique hydraulic
lifting and suspension system, and by the adoption of high quality products
domestic and abroad on all its key components, this trailer is made to provide
safe and reliable driving performance with a transportation capacity of 6-10
units of cars in different sizes. It has been used for transportation of vehicles
of many different brands including Buick from SGM, Santana from Shanghai Volkswagen,
Accord from Guangzhou Honda, FAW new Audi A6, Beijing Hyundai sedan, Beijing
Jeep off-road vehicle, Liuzhou Wuling, Shenyang Jinbei, and Toyota Coaster.
Main dimensions:
Over size (mm): length: 13,490; width: 2,490; height: 3,750
Axle number: 2
Total weight (kg): 16,350
Axle load (kg): 9,850
Rated load (kg): 7,000
Axle base (mm): 7,900 + 1,350
Complete vehicle kerb mass (kg): 9,350
Spring leaf (front/rear): 8/8, 3/3
Allowed drag total weight (kg): 7,000
Tire specification: 10.00-20, 11.00-20
Vehicle load using parameter: 9,500
Tire number: 8
Capacity of saddle (kg): 13,303
Tire base (mm): 2,205
VIN: LA9LAGBBxxxBHDxxx
Rear overhang/rear overhang (mm): 2,740
| Place of Origin: | Beijing Beijing in China |
| Model No: | 9162 |
