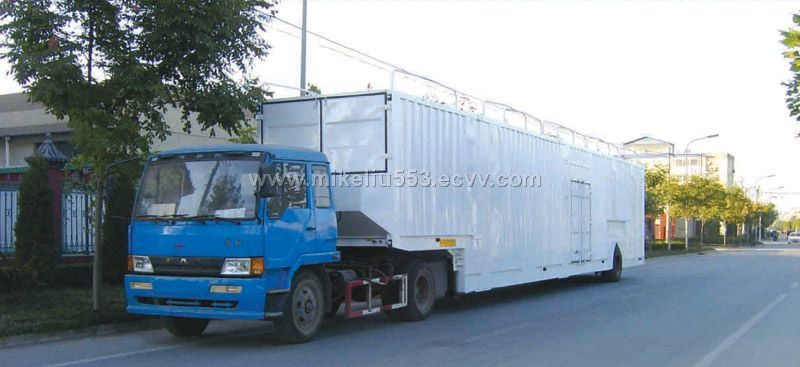

Single Axle Car Transportation Semi-Trailer

This trailer is the main product of Huanda, with adoption of unique hydraulic lifting system and suspension system and with use of world famous brand products on all key parts of its each system. This trailer offers safe and reliable driving, improves transportation capacity and can transport different cars. It has been used to load Buick from SGM, Santana from Shanghai Volkswagen, Accord from Guangzhou Honda, Jetta from FAW-Volkswagen, Citroen from Wuhan Shenlong, Xiali from Tianjin and Iveco from Naijing.
Main dimensions:

Over size (mm): length: 13,495; width: 2,500; height; 3,990

Axle number: 1

Total weight (kg): 16,000

Axle load (kg): 9,170

Rated load (kg): 7,000

Axle base (mm): 11 + 7

Complete vehicle kerb mass (kg): 9,000

Spring leaf (front/rear): -/7/7
Allowed drag total weight (kg): 6,500

Tire specification: 11.00-20, 12.00-20

Vehicle load using parameter: 9,500

Tire number: 4

Capacity of saddle (kg): 13,303

Tire base (mm): 1,840
Front rear: 1,820

VIN: LA9LAGBAxxxBHDxxx
Rear overhang/rear overhang (mm): 2,625

Approaching angle/departure angle (?: -/11

Place of Origin:	Beijing Beijing in China
Model No:	9163
