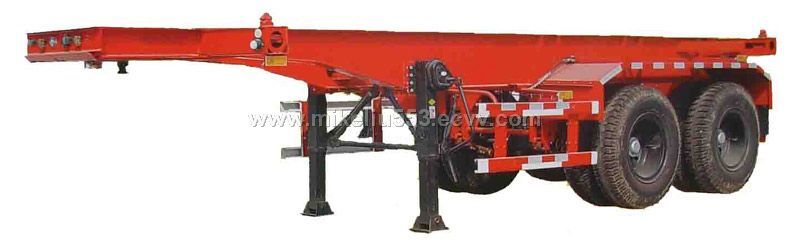

Two-Axle Framework Flatbed Semi-Trailer

This type BJQ9310TJZG two-axle flat bed 40" container carrier. Bulletin loading capacity is 26MT. With its 12 twist locks, it can transport one 40" and two 20" containers.
Over size (mm): length: 12,353; width: 2,480; height: 1,535
Axle number: 2

Total weight (kg): 31,250

Axle load (kg): -/17947 (combine load two axle)

Rated load (kg): 26,000

Axle base (mm): 8,150 + 1,360

Complete vehicle kerb mass (kg): 5,250

Spring leaf (front/rear): -/7/7
Tire specification: 11.00-20, 12.00-20

Tire number: 8

Capacity of saddle (kg): 13,303

Tire base (mm): 1,820

VIN: LA99EHH3xxxTLRxxx
Rear overhang/rear overhang (mm): -/1,520

Approaching angle/departure angle (?: -/23

Place of Origin:	Beijing Beijing in China
Model No:	9310
