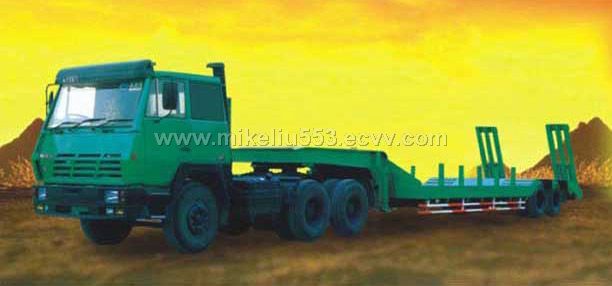

Double-Axle Low Flatbed Semi-Trailer

Detailed Product Description

This trailer can transport good-sized engine machines, and can also load containers, bulk cargoes or long goods. Its payload is 30MT.
Main dimensions:

Over size (mm): length: 11,350; width: 3,000; height: 1,710
Axle number: 2

Total weight (kg): 31,250

Axle load (kg): -/1,710 (combine load two axle)

Rated load (kg): 26,000

Axle base (mm): 8,675 + 1,220

Complete vehicle kerb mass (kg): 30,000

Spring leaf (front/rear): -/7/7

Allowed drag total weight (kg): 10,000

Tire specification: 11.00-20, 12.00-20

Vehicle load using parameter: 11,000

Tire number: 8
Capacity of saddle (kg): 29,000

Tire base (mm): 975

VIN: LA9GFEBBxxxBHDxxx

Rear overhang/rear overhang (mm): -/975

Approaching angle/departure angle (?: -/16
Place of Origin:Beijing Beijing in China
Model No:9401
