Beijing Huanda Automobile Assembly Co., Ltd

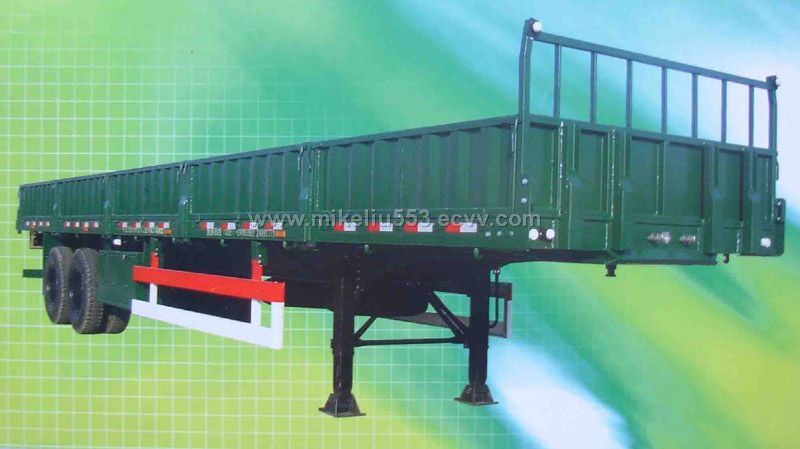

Two-Axle Ordinary Semi-Trailer

Detailed Product Description

This type is BJQ9280 two-axle semi-trailer truck, gate height is 600mm, trailer length is 10, 000mm and bulletin loading capacity is 26/20.83MT. It can transport bulk cargo or huge cargo. Performance: large cubage, excellent loading capacity.
Main dimensions:

Over size (mm): length: 10,000; width; 2,500; height; 2,565
Axle number: 2

Total weight (kg): 27,730

Axle load (kg): -/17,947 (combine load two axle)

Rated load (kg): 20,830

Axle base (mm): 6,000 + 1,360

Complete vehicle kerb mass (kg): 6,900

Spring leaf (front/rear): 7
Tire specification: 11.00-20, 12.00-20
Tire number: 8

Capacity of saddle (kg): 13,303

Tire base (mm): 1,820
VIN: LA99EHH3xxxTLRxxx

Rear overhang/rear overhang (mm): 900/1,740

Approaching angle/departure angle (?: -/18
Place of Origin:Beijing Beijing in China
Model No:9280
