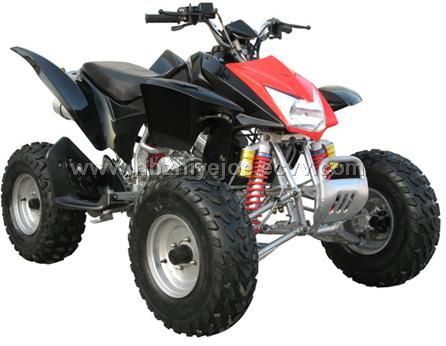

ATV

Detailed Product Description

ength(mm):1800
Width(mm):1170
Height(mm):1140
Top speed(km/h):≤75
Fuel consumption(L/100km):2.2
Starting type:Electric
Battery:12V9Ah
Dry weight(kg):195
Front brake type:Oil disc
Rear brake type:Oill disc
Transmission method:Chain
Front Tire:23*7-10
Rear Tire:22*10-10
Cylinder diameterXstroke:65.5x66.2
Type :4-stroke,single cylinder with water-cooled.Manual Clutch
Displacement(ml):223
Compression ratio:10.5:1
Ignition mode:CDI
Lubrication:Press/splash
Max.power(kw/rpm):11/7500
Max.torque(N.M/rpm):15.0/6000
Start mode:Elecric
Clutch:Wet centrifulgal slice
Engine oil cap.(L):0.9
Caburetor type :PZ30
Spark plug type:D87C
Oil pump :Inner-outer rotor type
Magneto:Permanent magnetic
Fuel tank cap.(L):11.5
Fuel grade:Octane NO.RQ93# or higher
Ground Clearance:145
Wheelbase:1230
