Concealed Hinge-Slide-on (SD201)

Slide-on Concealed Hinge

Features:
1) Made under ISO 9001, quality assured
2) Guarantee 50,000 times opening and closing
3) Material: cold-rolled steel
4) Antirust protection layer
5) Opening angle: 175 degrees
6) Slide-on, slip resistant
7) With functions of height and side adjustments

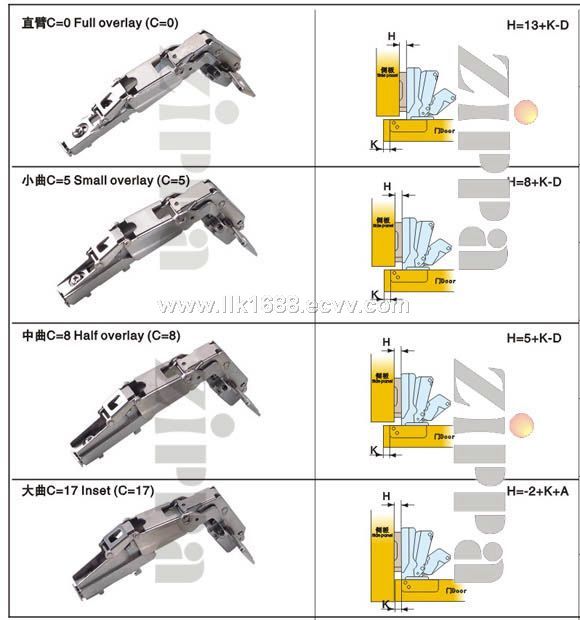

8) Full overlay, half overlay, inset models available
9) Mounting plates of various designs available
10) Mounting plate in different heights
11) Optional dowel available
12) Diameter of hinge cup: 35mm
13) Depth of hinge cup: 11. 3mm
14) Range of doors thickness: 14 - 26mm
15)Inner packing: 250 *300pcs/poly bag, or as customer's requirements
16)Outer packing: in carton, 1-2poly bas/carton, or as customer's requirements
17) Price Term: FOB Shunde, Guangzhou, Shenzhen; CFR; CIF
