Detailed Product Description

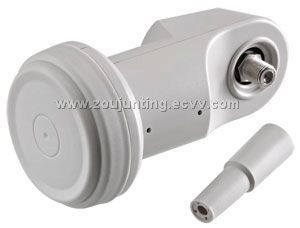

Universal Single LNB
High performing
low noise figure
For analogue and digital reception
use in harsh environment
Ideal for system expandability
Input frequency: 10.7 to 11.7GHz, 11.7 to 12.75GHz
Output frequency: 950 to 1,950MHz, 1,100 to 2,150MHz
Low frequency: 9.75GHz, 10.6GHz
Low initial accuracy (at 25 degrees): +/- 1MHz
Low temperature drift (at -30 to 70 degrees): +/- 3MHz
Low phase noise (at 1kHz offset): -60dBc/Hz
At 10kHz offset: -80dBc/Hz
At 100kHz offset: -100 dBc/Hz
Noise figure: 0.3dB
Conversion gain: 58dB (minimum)
Gain variation (over operating band): 5dB p-p (typical)
Gain flatness (any 27MHz): +/- 0.5dB
Cross pole isolation: 20dB (minimum) 25dB (typical)
Image rejection: 40dB (minimum)
P 1dB: 0 dBm (minimum)
Output VSWR: 2:1
Spurious response (at 1,700MHz): -58dBm (maximum)
DC current consumption: 220mA (maximum)
Polarization switching voltage: vertical: 10.5 to 14.2V
Horizontal: 15.5 to 21V
| Place of Origin: | Jiangsu Zhenjiang in China |
| Model No: | GH-001k |
| Minimum Order: | 1000 |
| Supply Ability: | 500000pcs/year |
| Package: | gift box |
| Delivery Time: | 20 |
