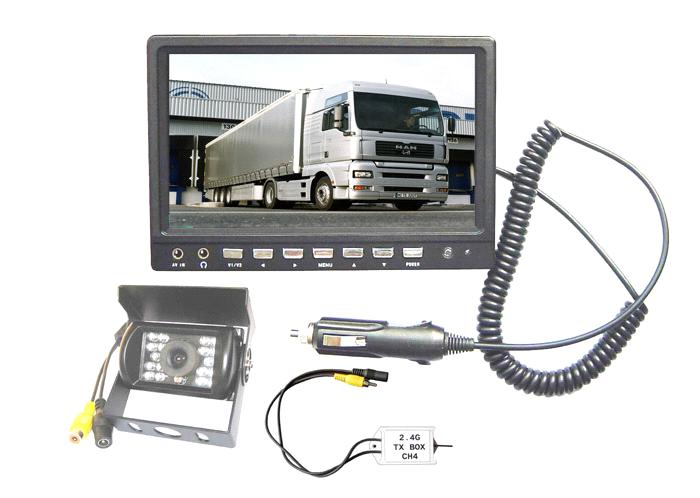

2.4 GHz Wireless Car Rear View System
Wireless receiver built-in LCD.
Model No: ST-705
Feature:
● Super slim 7-inch TFT LCD color monitor
●2.4GHz wireless receiver was built-in , also can be input the
DVD/VCD/GPS/TV AV signal to show the exciting programs ;
● ON/OFF manually or remote control ;
● Switching the rear/front camera video manually or by remote control;
● Easy to install , and keep your cab trimly as before ;
● Voltage Supply by car cigarette socket;
Burning Testing
Every product need to test used continually 12 hours before being sent out.
SPECIFICATION:
Camera:
CCD sensor
-With 18 IR LED light ,night vision distance up to 10-15 meters
-Self-sensitization control the night vision function by the light sensor
-120 degree wide range angle view
-2.4GHz wireless transmitter combine transmit A/V signal (optional)
-Operating Voltage: 12VDC
-Alloy shell, Waterproof, silver/black color selectable
7" LCD
(1) LCD screen dimension : 7 Inches
(3) Display mode : TFT
(4) luminance: 350CD/M2
(5) Contrast : 350 :1
(6) Input video : PAL OR NTSC
(7) Input Voltage : 12VDC
(8) Video Signal : 1V±0.2Vp-p 75Ω
(9) Operating Temperature : -20℃--65℃
(10) Operating humidity ≤90%（55℃）
(11) Storage Temperature : -40℃--85℃
(12) View Angle（Left/Right） ±70 °
(13) View Angle（Top） 25 °
(14) View Angle（underside） 45 °
(15) Wireless transmit distance: 200 meters without block .
(16) Built-in Channel: 2
(17) Original Frequency: 2414MHz, 2432 MHz, 2450 MHz, 2468 MHz optional .
| Place of Origin: | Shenzhen in China |
| Model No: | ST-705 |
| FOB Price: | 90-130 USD SZ |
| Payment Terms: | T/T(Bank Transfer),Western Union, |
| Package: | Color box/white box |
| Delivery Time: | 15 workdays |
