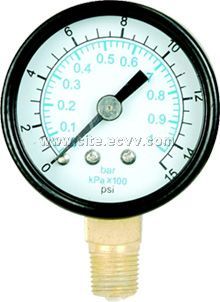

Steel case pressure gauges are high quality dry gauges desig
To provide reliable service on applications not corrosive to bn
Typical applications include pumps, compressors, pool filters
As well as commercial and industrial equipments.
* Case sizes:
1. 5", 2", 2. 5", 3. 5", 4", 4. 5", and 6", 8", 10",
* Case material:
Steel case, steel black case, steel chrome plated case, steel gold
Plated case, brass polished case, stainless steel case, all this can
Take with front flange, back flange and u-clamp.
* Bezel material:
Steel black bezel, steel bezel, chrome plated bezel, brass bezel,
Stainless, steel roll ring (or bayonet threaded ring), type: snap on, roll
ring
* Tube& socket:
Brass, stainless steel, steel with nickel plated, 316 stainless steel,
Phosphor bronze and so on.
* Movement:
Brass, stainless steel
* Connection:
1/8", 1/4", 1/2", 3/8", npt, bsp or bspt dependent on model& size.
Bottom, back left& right side connection
* Available ranges:
30hg "- 0-15-15000psi
* Windows:
Acrylic, glass& polycarbonate lens are available
* Accuracy:
Asme b40. 1 grade b(3-2-3%)
Asme b40. 1 grade a(2-1-2%)
* Options& accessories:
Custom dial, metric scale, din 2. 5% accuracy, recalibrators,
Restrictors, special connections and more.
| Place of Origin: | Zhejiang in China |
| Model No: | GS-01 |
