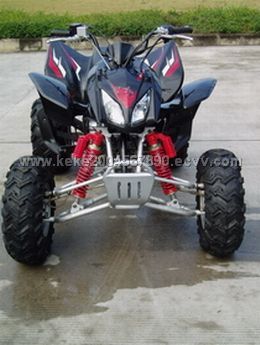

300cc ATV

QP300ST-9
Engine type: Vertical , single cylinder, 4 stroke, manual single clutch
Cooling: air cooling
Start method: electric
Bore x Stroke (mm): 78X60mm
Displacement (ml): 292ml
Compression ratio: 10.3:1
Max power (kw/r/min) : 16.2kw/7500r/min
Max torque (n.m/r/min): 20N.m/6000r/min
Idle Speed(r/min): 1250r/min+- 100r/min
Lowest oil consume : <=340g/k.w.h
Clutch type: wet multi-chips
Fuel type: above RQ-93
Lubrication: depress splash, inner and outer rotor
Break type (front / rear): disk / disk
Brake distance : 30km/h<=7m
Transmission : chain, inner reversed
Axle base (mm): 1300mm+-20mm
Tyre size(front / rear): 22x8-10; 22X11-10cm
Climb degree:
Max speed (km/h): 70km/h
Fuel tank capacity: 14.8L
Net weight : 205kgs
Max load : 150kgs
Hub: casting steel
Frame: steel welding
Plastics: PP material or carbon fiber
Fr.absorber : outer air chamber, oil and air damping
Rr.absorber : inner air chamber, oil and air damping
Battery specification: 12V14Ah
Package dimension: 1680X1160X960mm

Place of Origin:	Guangdong Jiangmen City in China
Model No:	QP300ST-9
Brand Name:	QIPAI
Other Price Terms:	Negotiated
Package:	Iron Carton Carton
Delivery Time:	20 days after confirm the payment
