Detailed Product Description

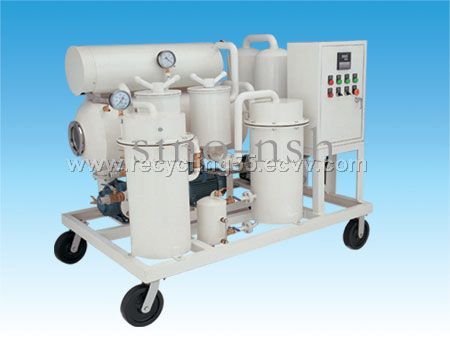

TF oil purifier(oil purifier,oil treatment,oil recycling,oil filtration,oil purifier,oil recycling,oil filtration,oil purifier,oil recycling,oil filtration,oil purifier,oil treatment,oil filtration,oil treatment,oil recycling,oil purifier,oil filtration,oil purifier,oil recycling) series is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid.It can eliminate them effectively and efficiently. TF series will result in the improvement of the properties of turbine oil, other lubrication and extend the maintenance period of turbine or other equipment which has lubrication system and keep them operate in good condition.
Technical specifications
Item Unit
TF-30 TF-50 TF-100 TF-150 TF-200 TF300
Flow Rate L/H
1800 3000 6000 9000 12000 18000
Heating Power Kw
18 24 45 60 90 108
Total Power Kw
21 28 50 66 98 118
Inlet(Outlet)Diameter Mm
DN20 DN25 DN32 DN40 DN50 DN65
Net Weight Kg
450 580 700 900 1000 1200
Size length Mm
1350 1400 1500 1500 1600 1800
width Mm
950 950 1000 1200 1350 1400
height Mm
1500 1600 1650 1800 1800 1850
Vacuum Range MPa -0.08 --- -0.096
Working Pressure MPa 0.3
Water Ratio PPm 100
Impurity size 5
Clearness NAS1638 6
Temperature Range 20-80
Demulsifying Value min 15
Power Supply ~50Hz 380V or as needed
Working Noise dB 70 75
| Place of Origin: | Chongqing Chongqing in China |
| Model No: | TF-30,TF-50,TF-100,TF-150 ,TF-200,TF-300 |
| Brand Name: | NSH |
| Other Price Terms: | 1 |
| Supply Ability: | 20 |
| Package: | wooden case |
| Delivery Time: | 30 |
