Detailed Product Description

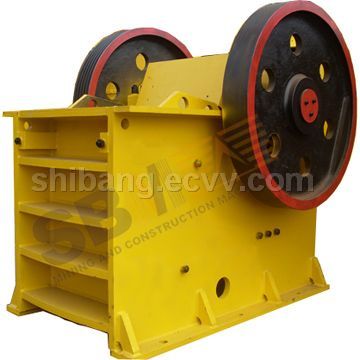

* Jaw crusher Application
Shibang series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. Jaw crushers are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Jaw crushers can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.
* Jaw crusher Features:
1. simple structure, easy maintenance;
2. stable performance;
3. even final particles and high crushing ratio.
* Jaw crusher Operating principle:
Shibang jaw crusher machine uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Available models of jaw crusher are PE150x250, PE250x400, PE400x600, PE600x900, PE900x1200, PE500x750, PE750x1060, PEX250x750, PEX250x1000, PEX250x1200.
For detailed technical parameter of jaw crusher, please visit our website or contact us directly.
| Place of Origin: | Shanghai in China |
| Model No: | PE400x600, PE600x900, PEX250x1000 |
| Brand Name: | SBM |
| Certificate: | ISO9001:2000 |
| Other Price Terms: | CIF, CFR, negotiable |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Others Payment Terms: | negotiable |
| Minimum Order: | Set/Sets 1 |
| Package: | export standard |
| Delivery Time: | 30 |
