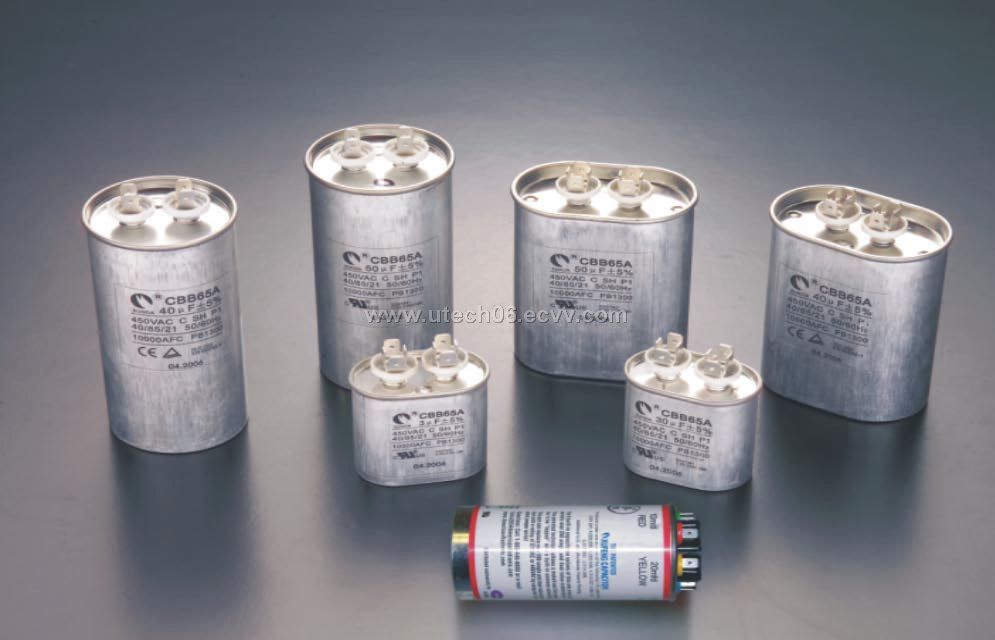

Air Conditioner Capacitor

CBB65 series metalized polypropylene film capacitor


Main uses:
Features and use: The product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, illuminating lamps, etc.

Products character:


Technique Data:
Technical features: climate types: 40/70/21
capacity volume variance: +5%-5%,+10%-10%
testing voltage: between leading-out ends: 1.75UR,10S no breakdown
between leading-out end and shell: 2200VAC,10S no breakdown
insulation resistance: between leading-out ends: >3000Mn.UF
between leading-out end and shell: >1000Mn
loss tangent: tang<0.002(50HZ)

Place of Origin:	Zhejiang Wenling in China
Model No:	CBB65
Brand Name:	Xufeng
Minimum Order:	1000pcs
Supply Ability:	800000pcs/month
Delivery Time:	10
