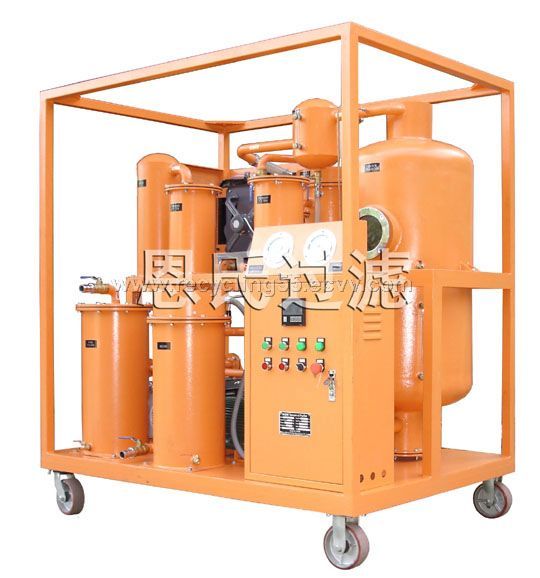

LV series oil purifier (oil purifier,oil treatment,oil recycling,oil filtration,oil purifier,oil recycling,oil filtration,oil purifier,oil recycling,oil filtration,oil purifier,oil treatment,oil filtration) is suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil. The most breakdown of machinery which has lubrication oil system results from contaminated lubrication in which has water, gas, impurities etc. LV series can rapidly remove water, gas, particulate matters and impurities from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery which has lubrication system.
Features
1.Perfect capacity of removing impurities. The special filters made by NSH are made of special materials which can eliminate various impurities, water and gas effectively and rapidly.
2.Automatic reverse-washing system will extend the lifetime and improve the performance of the filters.
3.High performance security system including pressure protection device and automatic temperature controller makes purifier operated safely.
4.Online work
5.Easy handling and maintenance.
6.Lower maintenance and replacement expenses
7.High efficiency and effectiveness
8.Small size, light weight, low noise
9.Available in mobile or stationary options.
10.Various sizes and configurations (shield) available
Technical Specifications
Item Unit
LV-30,LV-50,LV-100,LV-150,LV-200 LV-300
Flow Rate L/H 1800, 3000, 6000, 9000, 12000, 18000
Heating Power Kw 36, 60 , 72, 90 , 120, 135
Total Power Kw 39, 64 , 78, 98, 128, 145
Inlet (Outlet) DiameterMm
DN20 DN25 DN32 DN40 DN50 DN65
Net Weight Kg 500, 550 , 700, 850, 1000, 1250
Size length Mm 1500, 1600, 1750, 1900, 1950, 2100
Width Mm 1050, 1150, 1150, 1600, 1600, 1600
height Mm 1650,1700, 1750, 1950, 1950, 2000
Vacuum Range MPa -0.08--- -0.096
Working Pressure MPa 0.3
Water Ratio PPm 100
Impurity size 5
Clearness NAS 1638 5
Temperature Range 20-80
Power Supply V ~50Hz 380V or as needed
Working Noise dB 70 75
| Place of Origin: | Chongqing Chongqing in China |
| Model No: | LV-30,LV-50,LV-100,LV-150, LV-200,LV-300 |
| Brand Name: | nsh |
| Other Price Terms: | 20000 |
| Supply Ability: | 20 |
| Package: | wooden case |
| Delivery Time: | 30 |
