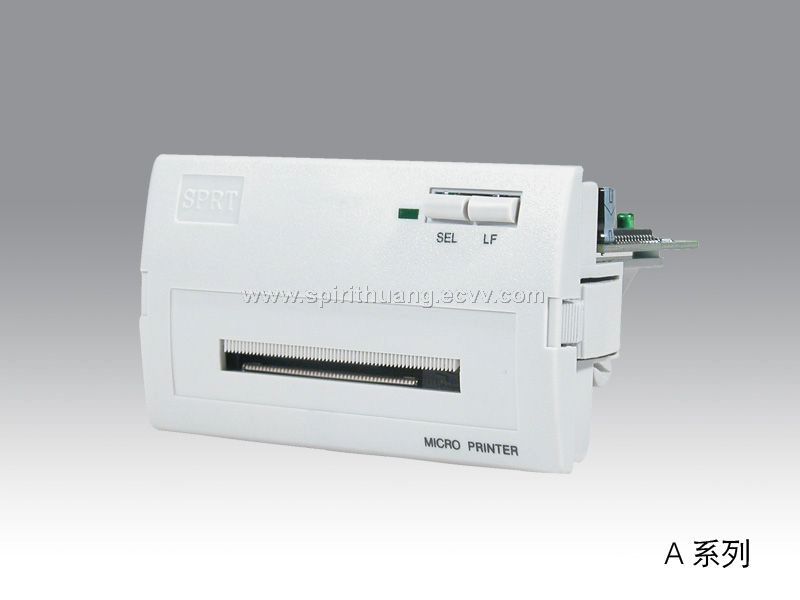

mini panel printer

Detailed Product Description

Printing Method:Thermal Line/Dot Matrix
Printing Speed 27mm/s;15mm/s(Direct Thermal) 1.0lines/s; 0.7lines/s; 0.4lines/s(Dot Matrix)
Resolution:8 dots/mm, 384 dots/line
Effective Printing Width:32mm/48mm
Character Set:IBM Character setII,GB2312-80(Chinese)
Print Font:ANK:5 x 7, Chinese: 24 x 24,16 x 16, 12 x 12
Character per Line:16/24/32/40
Paper Type:Thermal paper/Plain paper
Paper Dimension:MCBF44.5?0.5mm/ 57.5?0.5mm x 40.0mm 5 million lines(Direct Thermal) /0.5 million lines(Dot Matrix)
Reliability
Interface:RS-232, Parallel
Paper Supply Method:Auto paper loading
Power Supply (Adapter):DC5V, 3A
Outline Dimension (WxDxH):111 x 62x 63mm
Installation Port Size :103 x 57mm
Color: Beige
Weight:155g
Operating Temp: 0~ 50 癈
operating Humidity:0~80%
Applications:
Medical equipment
Measuring equipment
Security equipment
Analyzing instrument & meter
