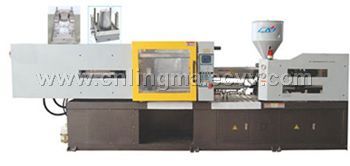

injection moulding machine

Features: 1) Automatic oil-supplying device adopted 2) Quick clamping and slow stopping 3) Double ratio of pressure and flow 4) High torsion and five-star motor molding driven 5) Special molding machine used microcomputer control Specifications: 1) Screw diameter: 40mm 2) Shot volume (theoretical): 128cm³ 3) Shot weight: 205g 4) Injection pressure: 159.5MPa 5) Injection rate: 100g/s 6) Screw L/D ratio: 20.5 7) Plasticizing capacity: 17.5g/s 8) Screw speed: 220rpm 9) Spheroid diameter: 10srmm 10) Clamping force: 1,200kN 11) Toggle stroke: 320mm 12) Space between tie-bars: 390 x 355mm 13) Mould thickness: 150-400mm 14) Ejector tonnage: 35kN 15) Ejector stroke: 90mm 16) Hole diameter: 125mm 17) Heating power: 7.45kW 18) Max. pump pressure: 16MPa 19) Pump motor power: 11-13kW 20) Machine size: 4 x 1.6 x 1.7m 21) Weight: 3.5MT

Place of Origin:	zhejiang taizhou in China
Model No:	ZSJ-120
Brand Name:	lingma
Other Price Terms:	USD
Package:	standard wooden case
