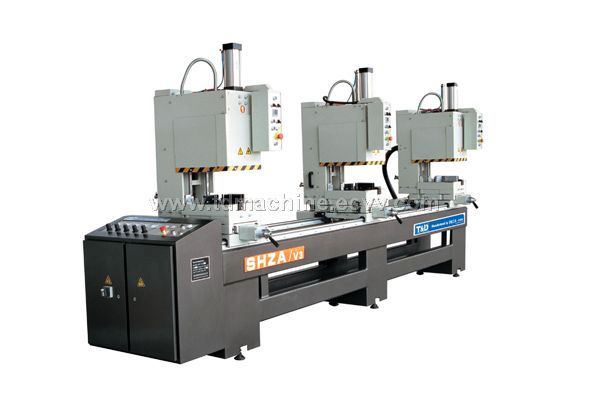

Three Head Welding Machine (SHZA-V3)

* Features function:

1) Used for corner or transom welding.

2) Each head can separately achieve corner welding or transom welding. Or working together with other heads to achieve various type welding.

* Features:

1) The most advanced machine type in Europe

2) Round guide linear motion pare, square guide linear motion pare, small fit clearance; Good rigidity of whole machine; Precise parts and strictly assembling process. All this ensured high running stability.

3) Cylinders, solenoid valves, PLC and low-voltage electric components and pneumatic components etc are all selected strictly, which ensured high reliability.

4) High applicability, can automatically realize the quick change between different profiles and welding types

5) Rigid grasp structure is adopted to the profile positioning system, which could strictly guarantee welding loss and high welding accuracy.

6) High welding corner strength and small fluctuation range, strict conforming with the European standard

7) Especially is suitable for high-grade and complex wind-and-door manufacturing.

* Technical Data:

* Operation Air Pressure: 0. 5-0. 8(MPa)

* Air Consumption: 270 (L/min)

* Input Voltage: 220V/380V 3N& sim50Hz

* Input Power: 7 (kw)

* Max. Welding Height: 180(mm)

* Max. Welding Width: 120(mm)

* Welding Range: 370-4500(mm)

* Overall Dimension: 5600χ1200χ2000(mm)

* Machine Weight: 1900(kg)
