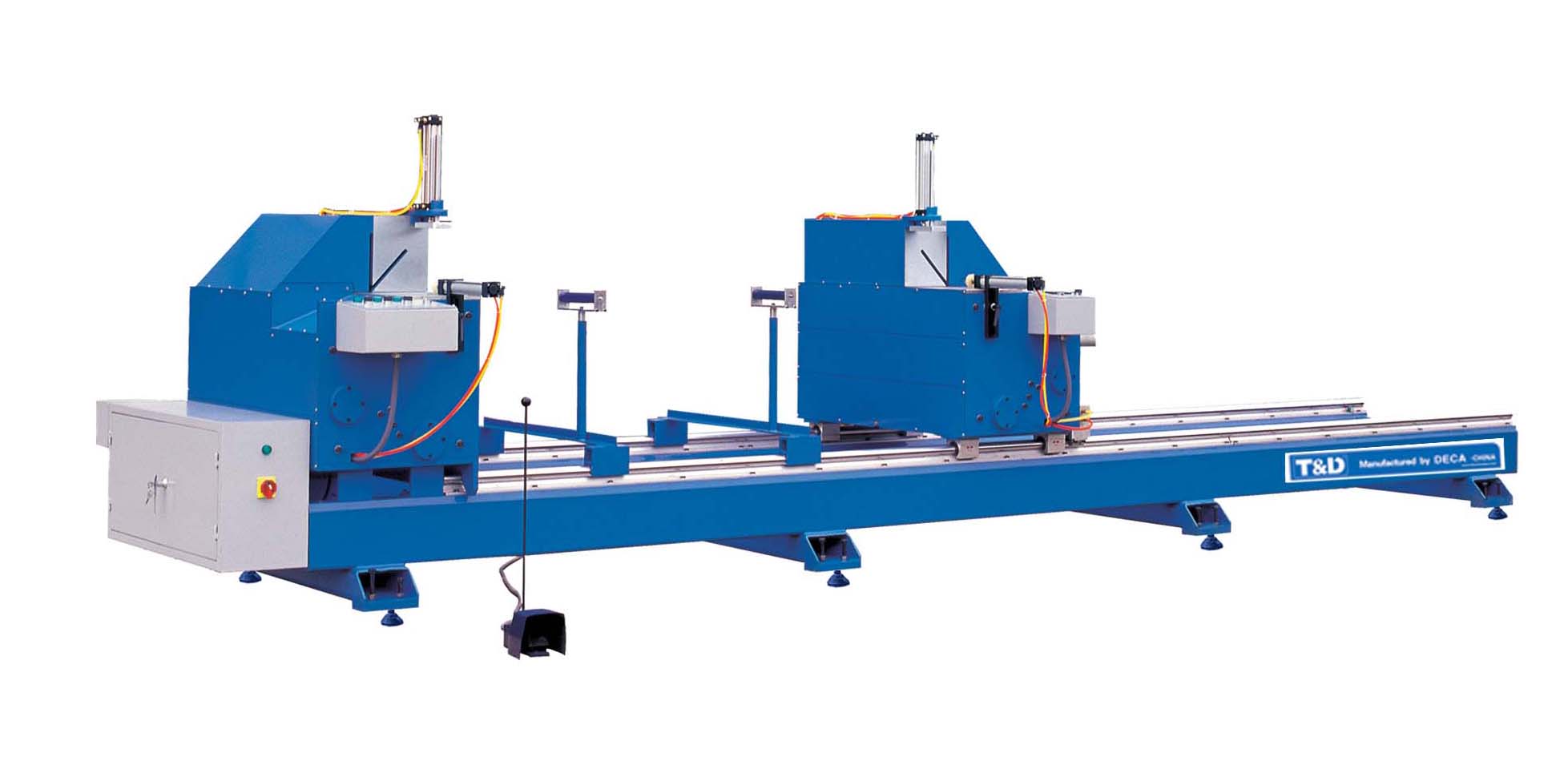

Detailed Product Description
* Function:
Used for plastic and aluminum profile cutting
* Features:
1) Automatic 45-90 degree cutting angle change
2) One time four pieces of profiles cutting available (height of the profile should be less than 60mm)
3) Machine guide and head feeding adopted linear bearing system
4) Automatic machine head brake
5) Reasonable structure and high processing precision
6) Digital display the profile cutting length and quantity
7) With head fine adjusting device
* Technical Data:
1) Power Supply: 380V 60Hz three-phase four-wire
2) Cutting Motor Power: 3kW (1. 5kWχ2)
3) Cutting Motor Rotational Speed: 3300 r/min
4) Operation Air Pressure: 0. 5-0. 8MPa
5) Air Consumption: 30L/min
6) Max. Cutting Length: 5000mm
7) Min. Cutting Length: 430mm
8) Cutting Range: 230& chi90mm (widthχwheight);
9) 120χ105mm (widthχweight)
10) Cutting Angle: 45 and 90 degree
11) Cutter Feeding Speed: 0-3 m/min (Stepless speed regulating)
12) Saw Blade Specification: Φ457χ4χΦ25. 4
13) Overall Dimension: 6000χ1400χ1400mm
14) Machine Weight: 1500kg
| Place of Origin: | China| |
| Brand Name: | T&D |
| Package: | Wooden Case |
