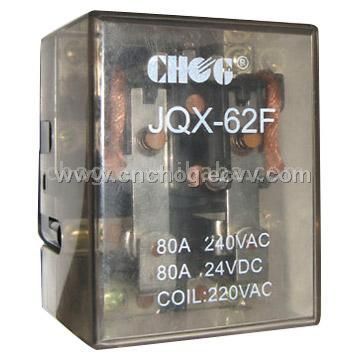

Relay (JQX-62F-2Z)

1) Contact arrangement: 1Z, 1H, 1D, 2Z, 2H, 3Z, 3H, 3D
2) Material: silver alloy
3) Max. switching voltage: 250V AC / 120V DC
4) Max. switching power: 560W/5kVA
5) Rated load (resistive): 30A / 40A / 80A, 250V AC, 2HP
6) Nominal voltage: 6-220V DC / 6-380V AC
9) Coil power: DC 2W-2.5W, AC 4.5VA
10) Contact resistance: 30m (1A, 6V DC)
15) Ambient temperature: -45 ~ +70癈
16) Electrical (operation): 105
17) Mechanical (operation): 107
18) Mounting method: socket type P.C.B

Place of Origin:	Zhejiang in China
Model No:	JQX-62F-2Z
Brand Name:	CHOG
Package:	standard export packing
Delivery Time:	delivery within 20 days after receiving L/C or T/T payment
