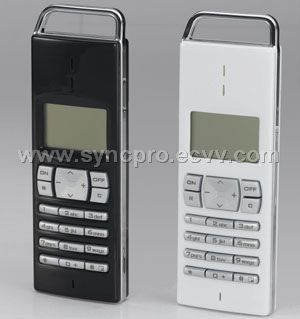

Bluetooth Wireless Skype Phone

Detailed Product Description

Bluetooth Wireless skype phone
Wireless transmission range of up to 15M
Wireless Phone function:
Display caller ID, answer/ring off/reject calling
Support Multi-languages display
Display calling time
Skype Out display function & balance charge
Skype speed dial function
Call history (display caller, calling time)
Voices mail/accept mail box message
Caller list displayed as group, convenience to manage caller
Conference call(1+4 caller synchronous call)
Microphone sound off function
Calling insert dial function
Support DTMF voice (use to dial extension)
BLUETOOTH SPEC:
Comply with Bluetooth Specification V2.0 + EDR
Enhanced Data Rate (EDR) compliant with v0.9 of specification for both 2Mbps and 3Mbps modulation modes
Support up to 7 ACL connection and 3 SCO connection
Support Faster connection, Flush timeout, Synchronisation, LMP improvements, AFH, Parameter ranges and LMP SCO Handle.
Up to 12 PIO/ 3 AIO pin definitions is ideally suited for rapid embedded development any kind of products.
13 or 16bit linear,8bit u-Law or A-Law PCM interface
Compact size (25x14.5x 2.4mm ) can be fit any type of product
RF output power ?dBm -- +4 dBm (class 2).
General Specification:
High receiving sensitivity (-85 dBm 0.1%BER).
Supply Voltage VDD: 3.3V+/-0.1V Regulated supply voltage
Carrier Frequency: 2400MHz to 2483.5MHz( USA , Spain ,France)
Modulation Method: GFSK,1Mbps,0.5BT Gaussian
Maximum Data Rate: Asynchronous:723.2kbps/57.6kbps Synchronous:433.9kbps/433.9kbps
Transmission Power:+3dBm to ?0dBm; Power control 6 stage
Hopping: 1600hops/sec, 1MHz channel space
Receiving Signal Range: -83dBm to -20 dBm
Output Interface: PCM,UART
Operation Temperature: -40 to +85 degree
Storage Temperature: -40 to +105 degree
Absolute Max Supply Voltage: 3.6V for VDD,other VDD +0.3V
Bluetooth Specification: Ver 2.0
