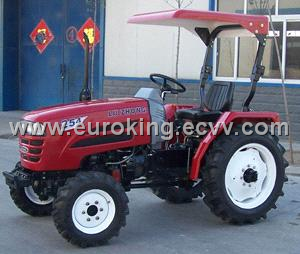

Luzhong 254

Prev Product

Detailed Product Description

Specifications:

Model			LZ254
Type			4*4 wheeled tractor
Overall dimensions (mm)		Length(inluding rear suspension system)	3030 (not including ballast)
		width	1470
		Height(to muffler top)	1907 or 1933/1863 or 1889
Track(mm)		Front wheel	1150 or 1215
		Rear wheel	1150～1200,1300～1350(adjustable)
Clearance to ground(mm)			228(tire size 8.3-24) or 254(tire size 9.5-24) [the bottom side of transmission housing to ground]
Turning radius (m)		Single side brake	2.6±0.2
		Double sides brake	3.1±0.3
Unladen Mass(kg)			1080/1130
Min. Laden mass(kg)			1180/1230
Weight distribution(kg)		Front wheel
		Rear wheel
Ballast (kg)		Front	optional
		Rear	optional
Rated traction force(kN)			6.5
PTO power (kW)			16
Gearshift(non-shuttle shif)			8F+2R or 16F+4R
Theoretic speed (is subject to 8.3-24 tire) (km/h)	Working gear	Forward	1.96, 2.99 4.68, 6.45 9.05, 13.79 21.64, 29.83
		Reverse	2.58, 11.91
	Creep gear (optional)	Front	0.42, 0.64 1.01, 1.39 1.95, 2.96 4.65, 6.41
		Reverse	0.55, 2.56
Engine	Model		TY2100IT/Y385T or KM385T or KM385BT
	type		vertical,water cooling
	Cylinder		2/3
	Bore*stroke(mm)		100105/8590
	Combusting chamber type		Direct injection/swirl chamber
	Rated power(kW)		18.37
	Rated speed(r/min)		2350
	Rated frel consumption(g/kW.h)		≤266.6/≤278.8or≤268(KM385BT)
	Rated oil consumption(g/kW.h)		≤2.04/≤2.72

Model			LZ254
Trasmission system	Clutch		Single plate,dry,spiral spring press type,constant meshed, single stage clutch non-independence double stage clutch
	Gearbox		Compound type(4+1)*2,8F/2R,sliding gear or mesh sleeve gearshift (16F+4R optional)
	Central drive		Spiral bevel gear
	Differential		Closed , 2 plaetary bevel gear
	Difference lock		Tooth inlayed type
	Final drive		Built in type,straight cylinder gear with single stage
	Front driving axle	Central drive	Spiral bevel gear
		differential	Closed , 2 planetary bevel gear
		Final drive	straight teethed cylinder gear with single stage
	Transferring case		straight teethed cylinder gear with separating mechanism
Runnging and steering system	Tire size (inch)	Front	6.00-12 or 6.00-14
		Rear	8.3-24 or 9.5-24
	Tire air pressure(Kpa)	Transport	120-150
		Tilling	100-120
	Toe-in of front wheel(mm)		6-12
	Steering type		Hydraulic steering
	Max.steering angle of front wheel		50o
Filling capacity(L)	Water tank radiator		0
	Fuel tank		21
	Engine sump		3.5
	Gearbox oil		11
	Lifter oil		9
	Front axle oil		4.5
