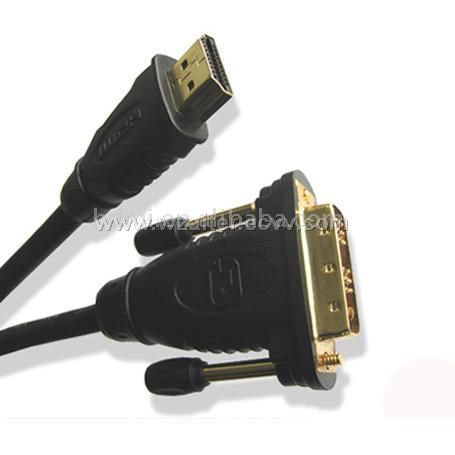

HDMI-DVI HDMI A Type to DVI-D Male Cable with Gold

Item No.: AHM2105
Version: HDMI1.2 / HDMI 1.3 (optional)
AWG: 28/30/26/24 (optional)
Plated: Gold /Nickel (optional)
Length: 1m to 15m (3FT to 50 FT)
Quality: HDMI Official Licensed HDMI Cables, Passed HDMI ATC Testing
Features:
1)24K gold-plated connectors ensure superior signal transfer and lifetime of maximum
performance.
2)4 screened twisted pairs of OFC stranded conductors with foam PE insulation layer,
improve the high frequency response for wide-bandwidth and efficient signal
transfer.
3)AL foil wrapped around each twisted pair. AL foil wrapped around the whole inner
cores and tinned copper braid shielding, treble screened to provide complete immunity
to environmental EMI and RFI.
4)Fully backward-compatible with DVI that handles digital transfers at rates up to
5Gbps
5)Working temperature:-25 degrees to 80 degrees
Electrical Features:
1)100% Open& Short Tests
2) Hi-pot: DC 300v 10ms
3) Insulation Resistance: 10m ohm min
4) Contact Resistance: 3max

Place of Origin:	Zhejiang Wenzhou in China
Model No:	AHM2105
Brand Name:	Aiter
Minimum Order:	1000pcs
Supply Ability:	100000
Package:	Blister packing
Delivery Time:	20
