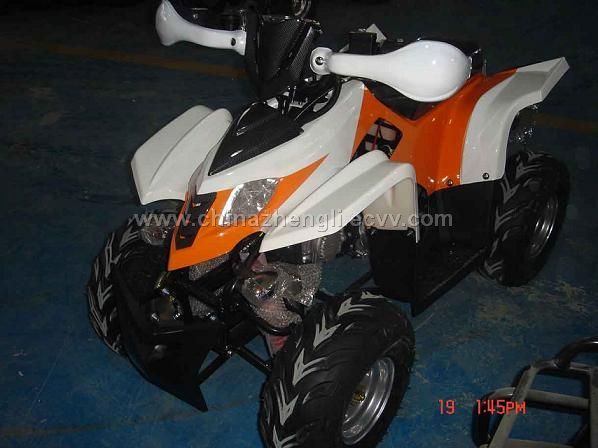

110cc ATV (ZL-ATV110C)

1) Engine type: 50cc/70cc/90cc/110cc automatic clutch, air-cooled,single cylinder, 4 strokes.
2) Displacement: 49.46/106.7ml
3) Max.power(Kw/r/min):2.6/(8,500 + - 5%),5.0/8500
4) Max. torque(N.m/r/min):3.0/(7,500 + - 5%), 6.7/6000
5) Compression rate: 9.4:1/9.7:1
6) Drive system: chain
7) Clutch: automatic clutch
8) Brake: rear hydraulic disc brake
9) Tire: 14.5X7.0-6(F/R)
10) Max. speed: >=60km/h
11) Battery: 12V x 5Ah
12) Seat height: 570mm
13) Wheel base: 820mm
14) Ground clearance: 80mm
15) Suspension: front and rear hydraulic suspension
16) Ignition type: CDI
17) Start system: electric start
18) Dimensions: 1,250 x 710 x 860mm
19) Max. load: 150Kgs

Packing:
Steel frame and carton
Carton dimensions:1,150 X 670 X 560mm
Container:68pcs/20", 136pcs/40",136pcs/40"HQ
N.W: 72Kgs
G.W: 88Kgs

Place of Origin:	Zhejiang in China
Model No:	ZL-ATV110C
