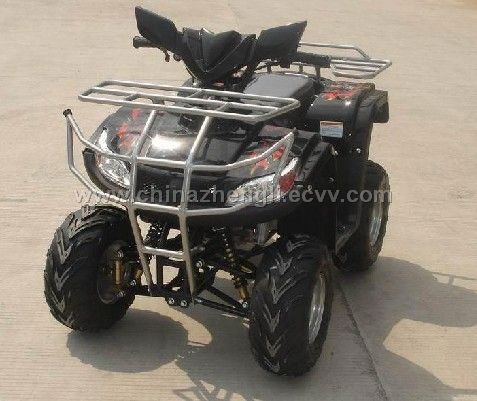

110cc ATV (ZL-ATV110A)

1) Engine type: 50cc/70cc/90cc/110cc automatic clutch, air-cooled,single cylinder, 4 strokes.

2) Displacement: 49.46/106.7ml

3) Max.power(Kw/r/min):2.6/(8,500 + - 5%),5.0/8500

4) Max. torque(N.m/r/min):3.0/(7,500 + - 5%), 6.7/6000

5) Compression rate: 9.4:1/9.7:1

6) Drive system: chain

7) Clutch: automatic clutch

8) Brake: rear hydraulic disc brake

9) Tire: 14.5X7.0-6(F/R)

10) Max. speed: >=60km/h

11) Battery: 12V x 5Ah

12) Seat height: 570mm

13) Wheel base: 820mm

14) Ground clearance: 80mm

15) Suspension: front and rear hydraulic suspension

16) Ignition type: CDI

17) Start system: electric start

18) Dimensions: 1,250 x 710 x 860mm

19) Max. load: 150Kgs

Packing:
Steel frame and carton
Carton dimensions:132*82*72cm
Container:pcs/20", 136pcs/40",136pcs/40"HQ
N.W: 72Kgs
G.W: 88Kgs
