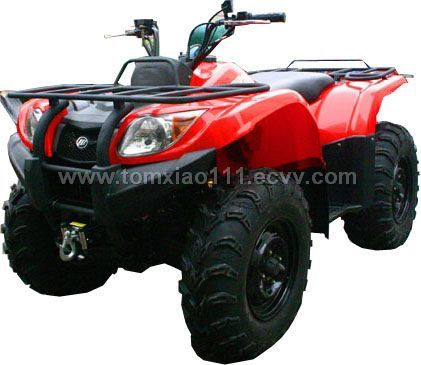

HUNTER STYLE ATV WITH 4X4 FWD

Detailed Product Description

Dimension ((L*B*H mm): 1993*1093*1120
Wheel base ( mm): 1233
Track(front/rear mm): 850/839
Min.Ground Clearance (mm): 245
Dry Weight: 300kg
Fuel Tank Capacity(L): 15
Engine Type:Single-cylinder, water-cooled,four-stroke,
Engine model: 185MQ
Bore*Stroke: 84.5mm*71.5mm
Displacement: 401ml
Maximum Power: 16.8kw/6000r/min
Maximum Torque: 29N.m/5500r/min
Clutch: Wet auto-centrifugal
Lubrication: Pressure/splash
Start: Electric/hand-kick start
Ignition: C.D.I
Transmission: automatic with reverse
Max. Speed (km/h): 80km/h
Front Type Size and Air Pressure: 25*8-12
Rear Type Size and Air Pressure: 25*10-12
Exhaust Index: CO<3.8%;HC<800ppm
Start Performance: <15s
Braking system (front/rear): disk
Brake Performance: <7m/30km/h
Loading:
20FT=10 units
40FT=20 units
40HQ=30 units
