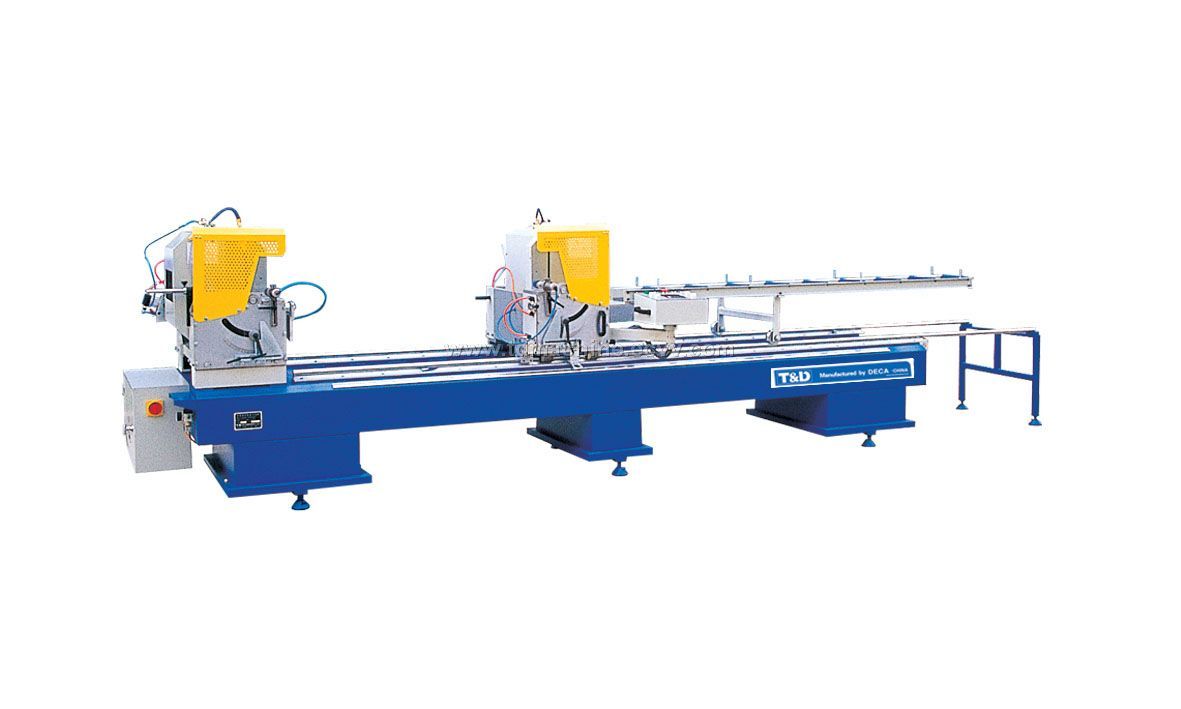

Digital Display Double Saw (LJZ2AC)

Features:

1. For the cutting of 45°90°

2. Saw blade forwarding in straight way

3. Special angle change device

4. Sliding profile supporter

5. Automatic angle change

6. Cutting limitation adjustable

7. One time two pieces of profile cutting (the height of profile less then 60 mm)

8. With the machine head fine adjust device

9. Digital display machine type

10. With machine head fine adjust device

Technical Data:

1. Air pressure: 0.5 - 0.8 (MPa)

2. Air consumption: 50 (L/min)

3. Input voltage: 380 V / 50 Hz

4. Input power: 4.5 (Kw)

5. Spindle rotary speed: 2800 (r/min)

6. Cutting height: 120 (mm)

7. Cutting width: 120 (mm)

8. Cutting length: 290 - 3600 (mm)

9. Overall dimension: 6000 * 1300 * 1650 (mm)

10. Weight: 1200 (kg)
