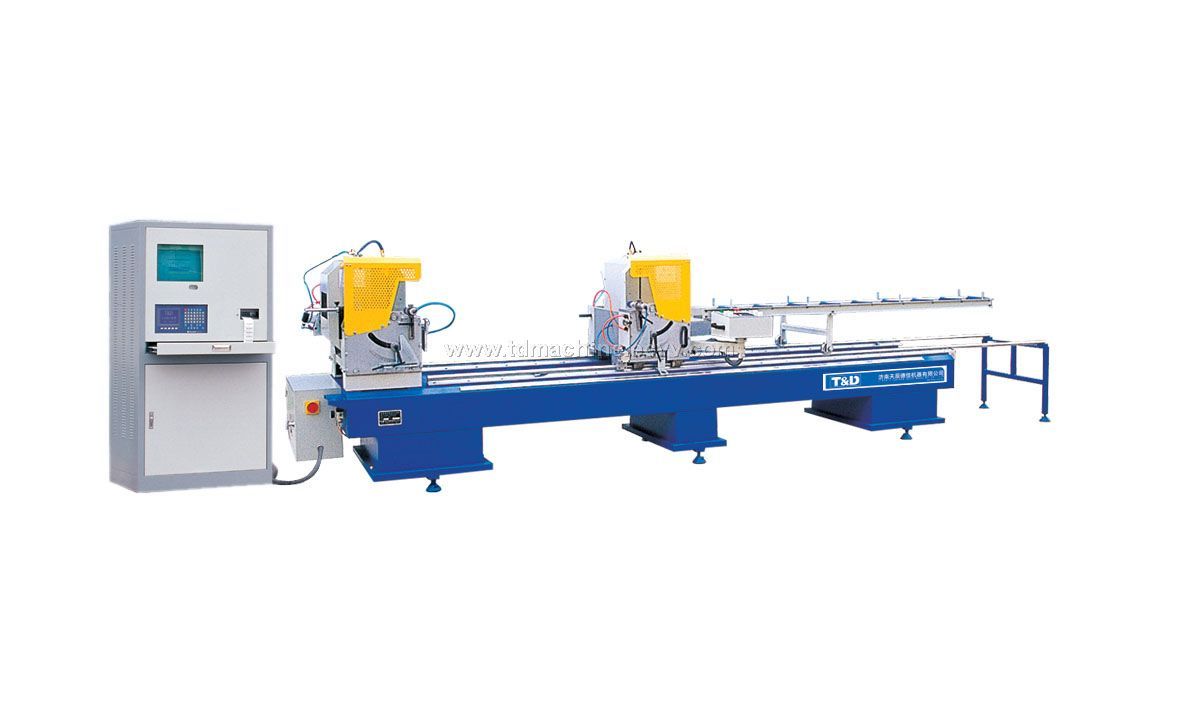

Saw (LJZ2AJ-CNC)

* Features :

1) For the cutting of 45?90

2) Saw blade forwarding in straight way

3) Special angle change device

4) Sliding profile supporter

5) Automatic angle change

6) Cutting limitation adjustable

7) One time two pieces of profile cutting (the height of profile less then 60mm)

8) with the machine head fine adjust device

9) Communicate data with computer and download software and creat processing

* Technical Data:

* Air Pressure: 0.5-0.8(MPa)

* Air Consumption: 50(L/min)

* Input Voltage: 380V/50Hz

* Input Power: 6(Kw)

* Spindle Rotary Speed: 2800(r/min)

* Cutting Height: 120(mm)

* Cutting Width: 120(mm)

* Cutting Length: 290-3600(mm)

* Overall Dimension: 6000χ1300χ1650(mm)

* Weight: 1200(kg)
