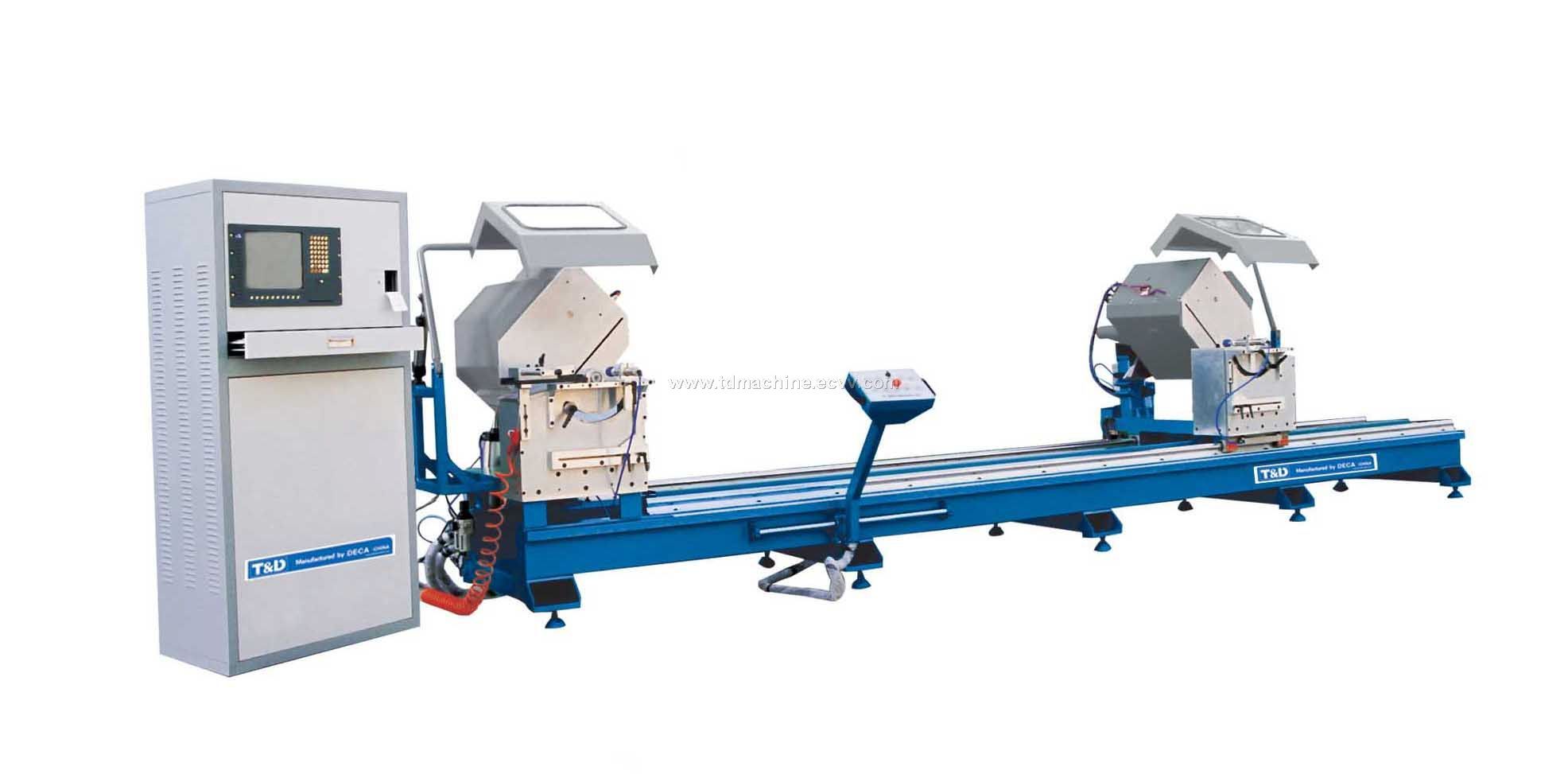

* Function:
Used for plastic and aluminum profile cutting
* Feature:
1) For inner 45o 90? And outer 45? To 22. 5? Plastic and aluminum profile cutting
2) Steel machine structure for the stable running.
3) High precision liner bearing guide sliding pare, ensured high cutting precision, stable capability and long using life.
4) High processing quality due to special high precision main shaft.
5) Feeding smoothly due to airdraulic actuator and linear bearing system
6) Mullion locating device make cut mullion in precision and convenience
7) Automatic cutting angle change
8) Safety protection system available.
9) Cutting 60 profiles once time affords high production efficiency
10) Controlled by digital system, can realize automatically stop, high automatically.
11) Can easy communicate with Mechanic parts, download software
12) Processing program/data, realize CAD/CAPP/CAM
13)Connected with bar code printer, realize profile identify timely printing.
* Technical Data:
1) Operation air pressure: 0. 5-0. 8Mpa
2) Air Consumption: 60L/min
3) Input Voltage: 380V 50Hz
4) Input Power: 6. 65KW
5) Blade Rotary Speed: 2800r/min
6) Blade Specification: ф500? Chi; 4. 4χф30mm
7) Cutting Length: 480-5000mm(Two head cutting 90? 290mm(single head cutting inner)
8) Cutting Width: 150mm
9) Cutting Height: 120mm
10) Overall Dimension: 6500mmχ1650mmχ1550mm
11) Machine Weight: 1600Kg
| Place of Origin: | China| |
| Model No: | LJZ2HJ-CNC-500 |
| Package: | Wooden Case |
