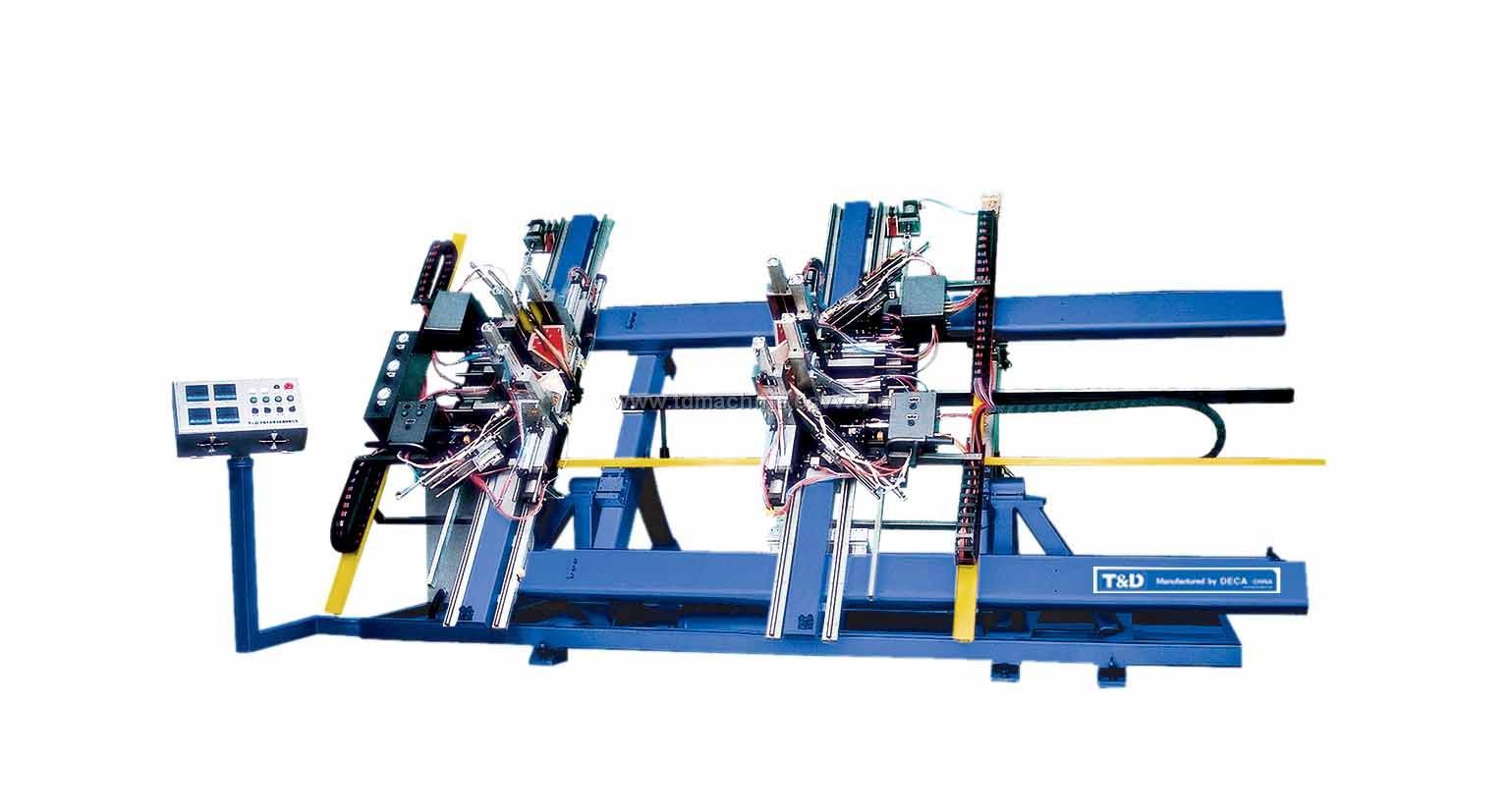

Welding Machine (SHP4D-3000A)

Welding Machine - Multi-Layers
Features:
1)One working cycle, one frame  mon profile fixture along with the machine can meet various height profiles' processing requirement
2) One working cycle, two-layer frames. Increased production efficiency
3) Special profile fixture is easy to change, for high corner strength and later good cleaning effect
4) Special "Know - How" technique keep the high corner strength
5) Imported linear bearing system kept the running stable Multi-layer Type

Technical Data:
* Air Pressure: 0.4-0.6 MPa
* Air Consumption: 80 L/min
* Input Voltage: 380V/220V 3N-50Hz
* Input Power: 7 kw
* Welding Height: Single Layer 25-160 mm
* Double Layer: 25-60 mm
* Welding Width: Single Layer 130 mm
* Double Layer: 60 mm
* Welding Range: 350*350-1800*3000 mm
* Overall Dimension: 5000*2000*2860 mm
* Weight: 3000kg
