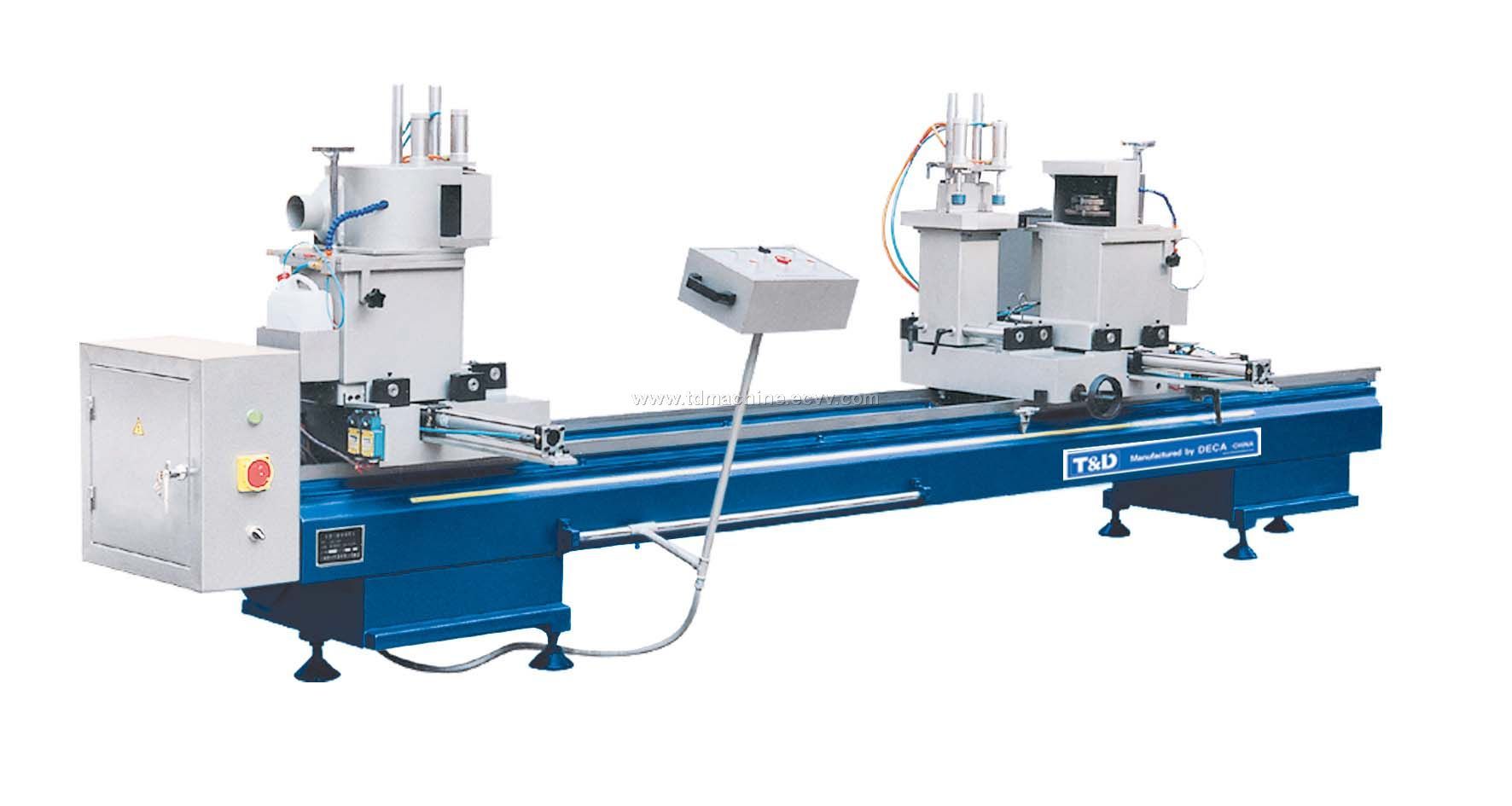

Double Head End Milling Machine (LXD2-2000)

Function:
For mullion end surface milling, suitable for screwing connection type
Features:
1) Pneumatic feeding
2) Changeable cutters for various profiles processing
Two machine head, one time clamp two end surfaces milling

Technical Data:
Air Pressure: 0.5-0.8 MPa
Air Consumption: 20 L/min
Input Voltage: 3N-50Hz 380/220V
Main-shaft Revolution: 2800 r/min
Input Power: 3 kW
Locating board rotate angle: -55-+55
Max Proeessing Dimension: 200χ42.5χ75 mm
Cutter Spindle Travel Range: 36 mm
Overall Dimension: 4250χ1040χ1290 mm
Weight: 600 kg

Place of Origin:	China|
Model No:	LXD2-2000
Brand Name:	T&D
Package:	Wooden Case
