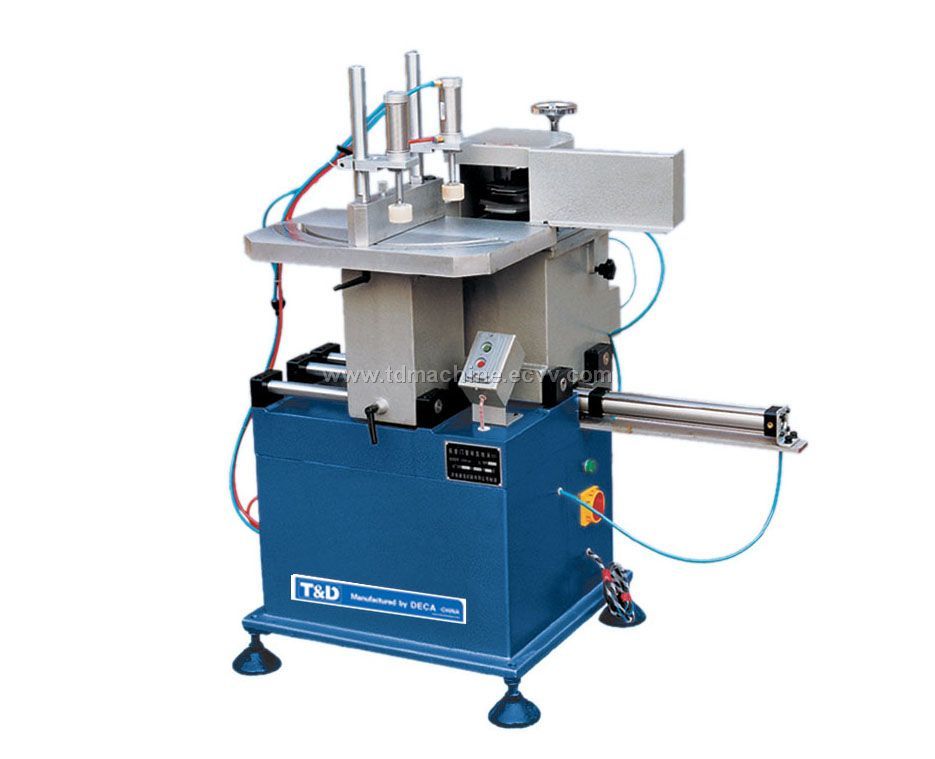

End Milling Machine (LXDW-200)
* Function: For mullion end surface milling, suitable for screwing connection type
* Features:
1) Pneumatic feeding
2) Changeable cutters for various profiles processing
* Technical Data:
* Air Pressure: 0. 5-0. 8 MPa
* Air Consumption: 10 L/min
* Input Voltage: 3N-50Hz 380/220V
* Main-shaft Revolution: 2800 r/min
* Input Power: 1. 5 kW
* Locating board rotate angle: -55-+55
* Max Proeessing Dimension: 200χ45χ70 mm
* Cutter Spindle Travel Range: 36 mm
* Overall Dimension: 1060χ800χ1300 mm
* Weight: 300 kg
