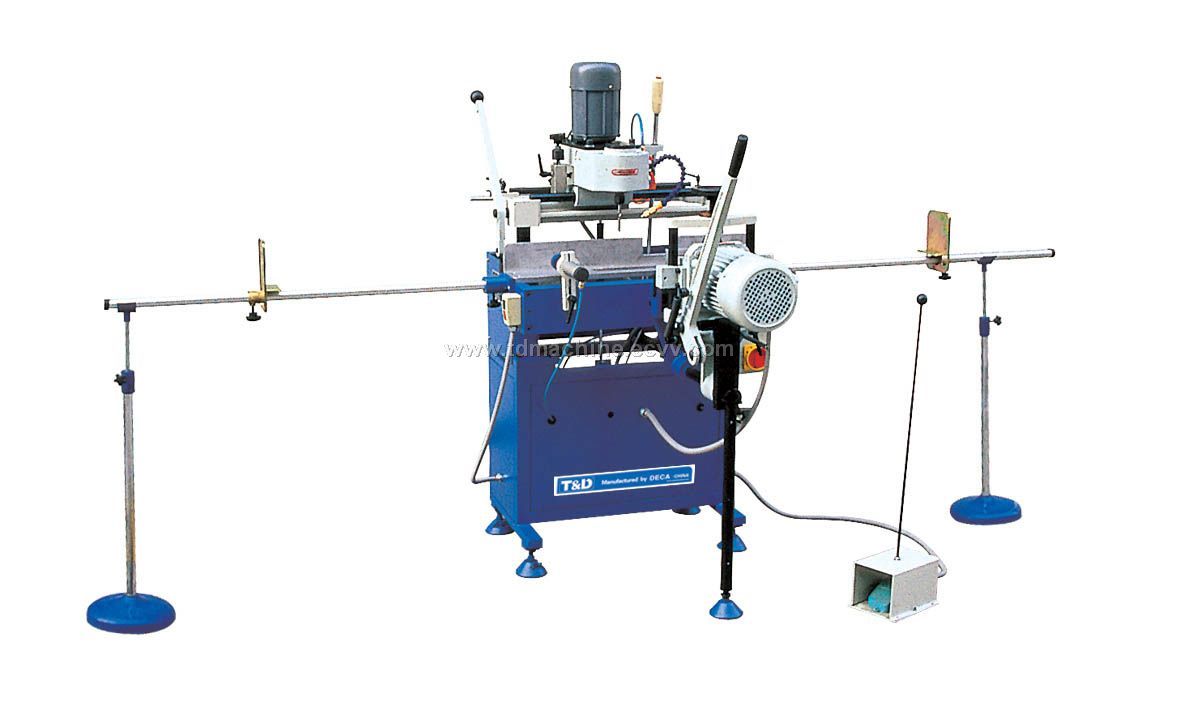

Lock Hole Milling Machine (SZS-100)

Function:
Milling all kinds of lock holes
Features :
1) Formed by three-hole drill part horizontal direction and copy milling part vertical direction
2) Adjusting parts in the top of the machine for easy adjusting
3) Leading rod of the three drilling bit ensured the three processed holes parallel.

Technical Data:
Operation Air Pressure: 0.5-0.8 MPa
Air Consumption: 3L/min
Input Voltage: 220V/50Hz
Main-Shaft Revolution: 11200/910 r/min
Input Power: 1.85 kW
Cutter Diameter: Φ5 Φ8 mm
Copy Milling Range: 90χ290 mm
Overall Dimension: 1000χ1130χ1500 mm
Machine Weight: 300 kg

Place of Origin:	China|
Model No:	SZS-100
Package:	Wooden Case
