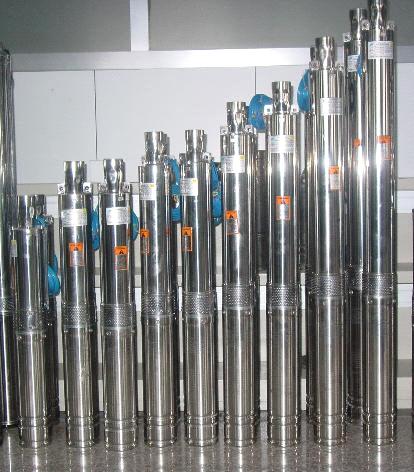

Adopted the NEMA standard
Power from 0.75 to 2.2 kw(single phase )
Power from 1.1 to 3.0 kw (Three phase)
Insulation class:B
Protection grade:IP58
Maximum diametre :93mm
Highest temperature of liquid:40 centigrade
Type Power Capacity Head(m)
100QJ503-0.55 0.55kw 0.75hp 5m3/h 15
100QJ505-0.75 0.75kw 1hp 5m3/h 25
100QJ507-1.1 1.1kw 1.5hp 5m3/h 35
100QJ509-1.5 1.5kw 2hp 5m3/h 45
100QJ511-2.2 2.2kw 3hp 5m3/h 55
100QJ513-2.2 2.2kw 3hp 5m3/h 65
Voltage:220/380V
100QJ515-3 3kw 4hp 5m3/h 75
100QJ517-3 3kw 4hp 5m3/h 85
100QJ519-3 &sp 3kw 4hp 5m3/h 95
100QJ523-4 4kw 5.5hp 5m3/h 115
Voltage:380V
Pipe dia. 2 inch
Materials
-casing both of pump and motor.pump shaft:
stainless steel AISI304
-Outlet and inlet:STAINLESS STEEL
-Impeller and diffuser.non-return valve
thermoplastic resin PPO
