Feature:

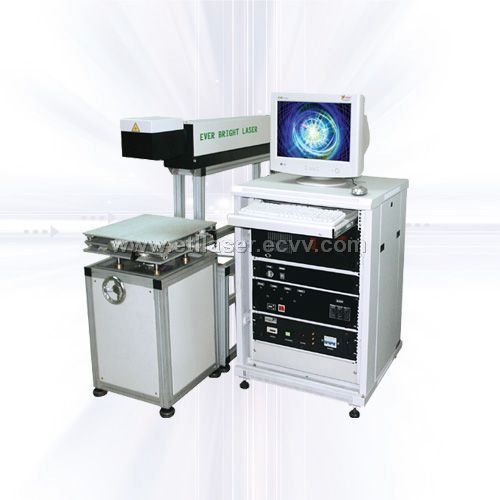

CO2 laser marker is a kind of gas laser. Its wave length is 10. 6 μm, Belongs to the infrared frequency scope, The CO2 laser has quite big power and quite high electric light transfer efficiency, It is the present power biggest one kind of laser.
The CO2 laser work matter is the CO2 gas. If enter CO2 and others assistance gas into discharge electric tube, When raises the voltage on the electrode, the glow discharge will appear in the discharge tube, May cause the gas release to the laser, after that if enlarge the release laser energy, May carry on the laser processing.
1. Laser power big
2. Power is controlled by software, and continuity.
3. Marking scope is large.
4. Marking is clearly, is not easy to wear; The efficiency of cutting is high.
5. Engraving depth is at will.
6. The cost is low and need not consumption materials.
Application:
Widely be used in the nonmetallic material, such as button, leather, lumber, plastic, electronic component, glass and gas cutting processing.
Parameter:
Mix laser power: 30W
Laser wavelength: 10.6μm
Laser repeat frequency: <25KHZ
Marking scope: 100*100mm, 200*200mm, 300*300mm
Marking depth: <3mm
Marking line speed: <7000mm/s
Min line width: 0.1mm/s
Min character: 0.40mm
Repeat precision: ± 0.01mm
Whole consumption power: 1.2KW/2KW
Electricity demand: 220W/single-phase/50HZ/8A
| Place of Origin: | Shanghai Shanghai in China |
| Model No: | M30C |
| Brand Name: | ETL |
| Minimum Order: | one set |
| Package: | wooden package |
| Delivery Time: | 15 |
