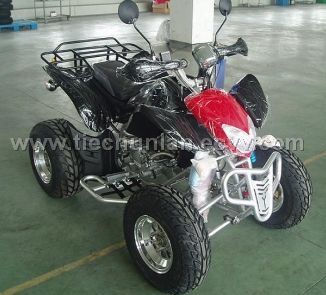

ATV with EEC (LYDA-203D)

Detailed Product Description

1) Engine: 200cc, 4-stroke, single cylinder, water cooled

2) Engine displacement (ml): 197

3) Bore x stroke (mm): 63. 5 x 62. 2

4) Max power (km/rpm): 11/8, 500

5) Max torque (N. M/min): 15/6, 000

6) Minimum fuel consumption (g/kWh): 354, Engine Compression Ratio: 10. 0: 1

7) Starting mode: electric start

8) Transmission mode: chain driven

9) Brake type(front / rear): disc / disc

10) Brake distance(m/30km): 7

11) Shift speed type: five Speed with inner reverse gear

12) Clutch mode: manual clutch

13) Minimum turning radius(mm): 3, 000

14) Climbing degree: 27

15) Seat height (mm): 840

16) Min. Ground clearance (mm): 120

17) Top speed (km/h): 60

18) Tire dimension (front / rear): AT21 x 7-10 / AT20. 5 x 10-10

19) Cover material: PP

20) Available colors: red, yellow, blue, green, and black

21) Product dimensions: 1, 710 x 1, 000 x 1, 150mm

22) Available color: red, yellow, blue, green, black

Place of Origin:Zhejiang in China
Brand Name:Eagle Lingying
Delivery Time:10~15
