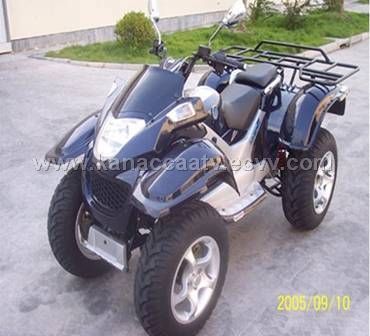

EEC ATV-WA260A

Engine:260cc water cooled
Specifications:
1) Engine: 260cc, water cooled with reverse gear, CVT system
2) Max. power: 12kW
3) Max. torque: 20N.m/5,500rpm
4) Ground clearance: 150mm
5) Tank capacity: 7L
6) Transmission mode: shaft drive
7) Starter: electric start
8) Tire:
  a) Front: 24 x 8.0 - 14
  b) Rear: 24 x 10 - 14
9) Max. speed: 70km/h
10) Brakes:
  a) Front: disk brake
  b) Rear: disk brake
11) Brake distance: 7m (30km/h)
12) Battery: 12V, 14Ah
13) Seat height: 800mm
14) Max. load: 200kg
15) Product dimensions: 2,100 x 1,215 x 1,120 mm
Outer packing:
Carton dimensions: 2,280 x 1,270 x 870mm
N.W.: 260kg
G.W.: 310kg
Conveyance:
Qty/40'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' HQ: 27pcs

Place of Origin:	Shanghai Shanghai in China
Model No:	ATV-WA260A
