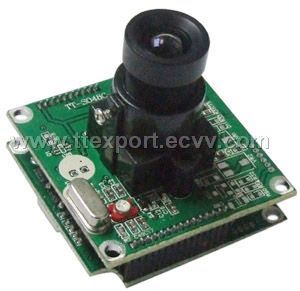

CCTV Board Camera (TT-SO48C)

Feartures:

-1/3 Color SONY
-DSP SUPER HAD CCD

-480TVL, 0. 2 Lux
-3. 6mm board lens included
-CS mount selectable
-38 x 38mm
-Double layer PCB
-PAL/NTSC, stable performance

Product Specifications:
Model TT-SO48C
Image Sensor Color 1/3 Sony SUPER HAD DSP CCD  TV system PAL/ NTSC
Effective Pixels NTSC: 811(H )×508(V) PAL: 795(H )×596(V)
Resolution 480 TV Lines
Horizontal Sync. Frequency 15. 625KHz/15. 734KHz
Vertical Sync. Frequency 50Hz/60Hz
Min illumination 0. 5Lux
Video Output BNC 1. 0Vp-p 75ohm
S/N Ratio ≥48dB(AGC Off)
Electronic Shutter Time PAL = 1/50 - 1/100, 000 seconds
NTSC = 1/60 - 1/100, 000 seconds
Power supply 12V DC 300mA
Operation Temperature -10 to 50 deg. C (Humidity: 95% max)
Storage Temperature -20 to 60 deg. C (Humidity: 95% max)
