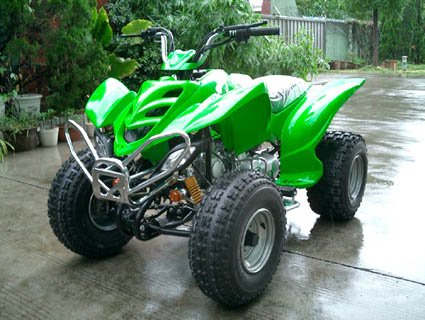

ATV and quads

Detailed Product Description

Overall Dimension :1540*860*950MM carton size:1380x890x720mm
Wheelbase :1040MM seat height:670MM
Min Turning Radius: 2400 MM Starting System :electric
Dry Weight :116kg(256 lbs) transmission:shaft drive
Engine Description 4 stroke,single cylinder,air cooling
Displacement:107ml Bore & Stroke：52.4*49.5MM
Fuel Tank Capacity:7.8L Front tires: 19*7-8 /2.9psi
Real tires:18*9.50-8 /2.9psi compression ratio:9.6:1
Brake:drum rider capacity:1 person
Maximum Speed (road) km/h:40KM/h
Max load Capacity:95kg(209lb)
engine oil capacity:0.95L Gear oil capatity:0.12
front suspension:leading arm,real supension:swing arm battery:112V-7A 40HQ'' container:63sets 20'':27sets
