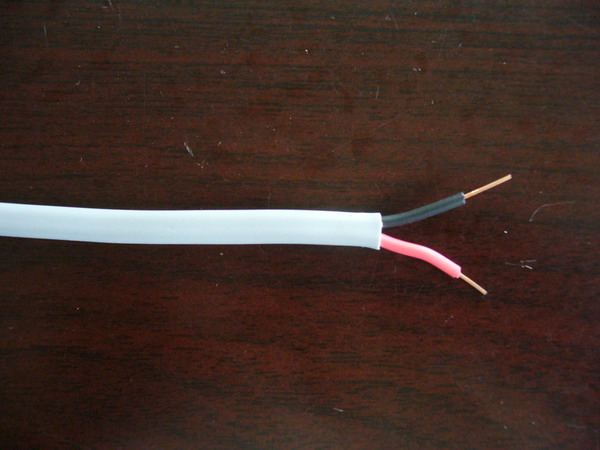

Power Cable (XY-004)

Specification:

BC: Bare Copper C: Cores

1) 2C*42*0.174mm BC Conductor + 2.17mm PVC Insulation + 6.3mm PVC Jacket

2) Customers' specifications are wellcomed.

Note:
1) VDE/KEMA Flexible Cord
A. 2C*42*0.174mm BC Conductor + 2.17mm PVC Insulation + 3.55*5.60mm PVC Jacket
B. 2C*24*0.2mm BC Conductor + 2.43mm PVC Insulation + 6.50mm PVC Jacket
C. 3C*30*0.177mm BC Conductor + 2.35mm PVC Insulation + 7.25mm PVC Jacket

2) Light Duty PVC Jacket Flexible Cord
A. 2C*16*0.2mm BC Conductor + 2.02mm PVC Insulation + 5.34mmPVC Jacket
B. 2C*16*0.2mm BC Conductor + 2.02mm PVC Insulation + 3.32*5.34mm PVC Jacket
C. 2C*24*0.2mm BC Conductor + 2.23mm PVC Insulation + 5.76mm PVC Jacket
D. 2C*24*0.2mm BC Conductor + 2.23mm PVC Insulation + 3.53*5.76mm PVC Jacket
E. 3C*16*0.2mm BC Conductor + 2.02mm PVC Insulation + 5.65mm PVC Jacket
F. 3C*24*0.2mm BC Conductor + 2.23mm PVC Insulation + 6.3mm PVC Jacket

3) Ordinary Duty PVC Jacket Flexible Cord
A. 2C*24*0.2mm BC Conductor + 2.43mm PVC Insulation + 6.60mm PVC Jacket
B. 2C*24*0.2mm BC Conductor + 2.43mm PVC Insulation + 4.15*6.58mm PVC Jacket
C. 2C*32*0.2mm BC Conductor + 2.60mm PVC Insulation + 6.94mm PVC Jacket
D. 2C*30*0.25mm BC Conductor + 3.10mm PVC Insulation + 7.94mm PVC Jacket
E. 2C*49*0.25mm BC Conductor + 3.74mm PVC Insulation + 9.70mm PVC Jacket
F. 3C*24*0.2mm BC Conductor + 2.43mm PVC Insulation + 6.95mm PVC Jacket
G. 3C*32*0.2mm BC Conductor + 2.60mm PVC Insulation + 7.34mm PVC Jacket
H. 3C*30*0.25mm BC Conductor + 3.10mm PVC Insulation + 8.70mm PVC Jacket
I. 3C*49*0.25mm BC Conductor + 3.74mm PVC Insulation + 10.50mm PVC Jacket
J. 4C*24*0.2mm BC Conductor + 2.40mm PVC Insulation + 7.50mm PVC Jacket
K. 4C*32*0.2mm BC Conductor + 2.54mm PVC Insulation + 8.00mm PVC Jacket
L. 4C*30*0.25mm BC Conductor + 3.10mm PVC Insulation + 9.60mm PVC Jacket
M. 4C*49*0.25mm BC Conductor + 3.70mm PVC Insulation + 11.36mm PVC Jacket

4) Wire For Internal Wiring Of Equipment
A. 1*0.643mm BC Conductor + 1.5mm PVC Insulation
B. 12*0.15mm BC Conductor + 1.45mm PVC Insulation
C. 16*0.15mm BC Conductor + 1.94mm PVC Insulation

Packing:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.

2) Inner packing: Wooden reel, plastic reel, and paper reel.

3) Outer packing: Carton box, pull out box, pallet available.

4) Other packing available according to client's request.
