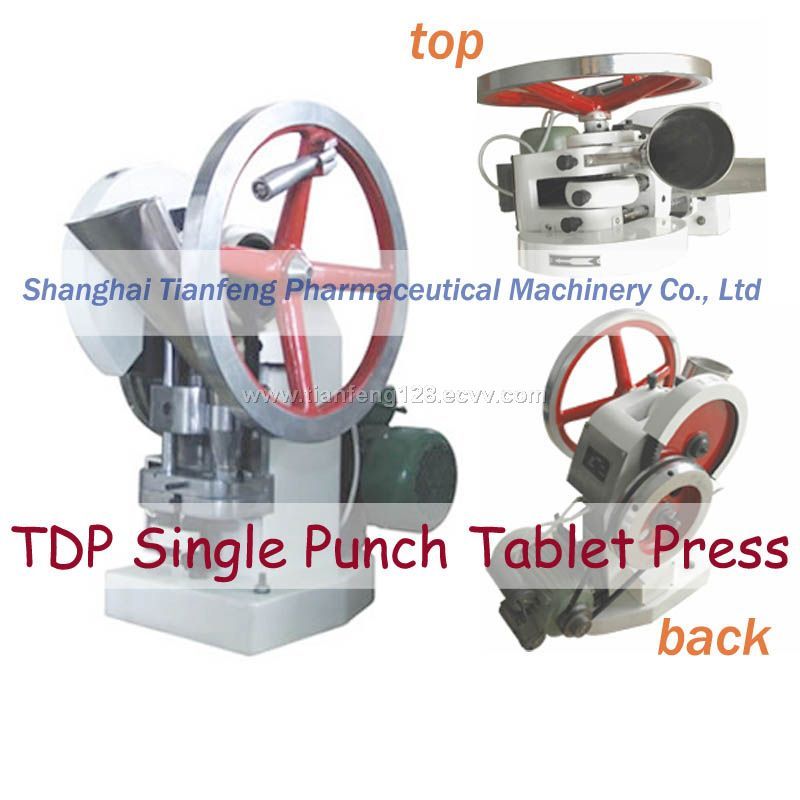

Single-Punch Tablet Press

This machine is used for tabletting different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
1. Model: TDP-1.5
2. Max. pressure (kN): 15
3. Max. dia. of tablet (mm): 12
4. Max. depth of fill (mm): 12
5. Thickness of largest tablet (mm): 6
6. Net weight (kg): 90
7. Production capacity (pcs/h): 5,000
8. Motor (W): 550
1. Model: TDP5
2. Max. pressure (kN): 50
3. Max. dia. of tablet (mm): 20
4. Max. depth of fill (mm): 16
5. Thickness of largest tablet (mm): 6
6. Net weight (kg): 125
7. Production capacity (pcs/h): 4,500
8. Motor (W): 750

Place of Origin:	Shanghai Shanghai in China
Model No:	TDP1.5/TDP3/TDP5/TDP6
Brand Name:	SHANGHAI TIANFENG
Delivery Time:	10
