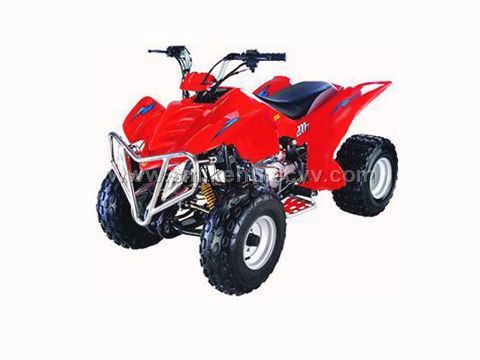

ATV

Detailed Product Description

Product Name:
ATV
Item No.:
SC-1005
Specification:
vehicle specitication:
1) Dimensions(L*W*H)(mm): 1740*985*1100
2) Wheel base(mm): 1050
3) Min.ground clearance(mm): 120
4) Dry weight(kg): 145
5) Max.loading weight(kg): 150
6) Max.speed(kw/h): 80
7) brake method(FR/RR): drum/disk
8) Tire size(FR/RR): 19*7-8/18*9.5-8
9) Seat height(mm): 760
10) Suspension/Front: air chamber
11) Suspension/Rear: air chamber
12) Fuel Capacity: 4.3L
Outer packing: Cartons with steel frame
Dimensions: 1480*850*840mm
Quantity: 21pcs/20", 45pcs/40" ,66pcs/40HQ
Engine specitfications:
1) ENGINE type: 200cc,single cylinder; water-cooled,4-stroke
2) Bore*stroke(mm): 63*62
3) Compressing ratio: 9.0:1
4) Max.power and speed: 11kw/8600rpm(-5%,+5%)
5) Max.torque(N.m/rpm): 14.5N.M/8000r/min(-5%,+5%)
6) Starting method: electric
7) Lubrication way: press and splash
8) Ignition: C.D.I
9) Trasmission: 4-speed
10) Drive train: chain
