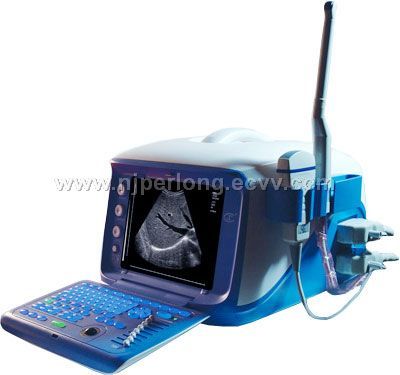

PT6000A B mode Ultrasound Scanner
Suitable for scanning and diagnosing the superficial organs, abdomen, heart and OB/GYN.
Digital signal imaging technology.
Scanning Modes: Convex, Micro Convex and Linear Array.
8 stages of STC adjustment for any point in the image.
8 frame correlations, offering clear edge, reduced side lobe artifacts.
17 multi-section and dynamic focusing.
Emission Focus of near-field, near & central field, central & far field and far field selectable to get optimized resolution.
10 inch VGA monitor.
Optical Trace Ball.
Voltage and current surge protector.
Gray scale: 256.
Depth scope: 0-200 mm.
Body marks: 16.
OB/GYN software package and Cardiac software package.
Character input/display: magnification, time, date, frequency, patientæ¯ ID, age, sex and automatical pregnancy calculating.
Display Modes: B, B/B. B/M, M.
Amplification: 1.0, 1.2, 1.5, 2.0
Security: GB10152-1997, GB9706.1-1995 National Ultrasound Equipment Security Standard.
Standard Specification:
Main Unit.
2.5/3.5/4.0/5.0 MHz abdomen probe.
Options:
7.5/8.0 MHz Linear probe.
6.5/7.0 MHz transvaginal probe.
Thermal paper printer.
Color output system.
Cine loop system.
| Place of Origin: | Jiangsu Nanjing in China |
| Model No: | PT6000A |
| Brand Name: | Perlong |
