Detailed Product Description

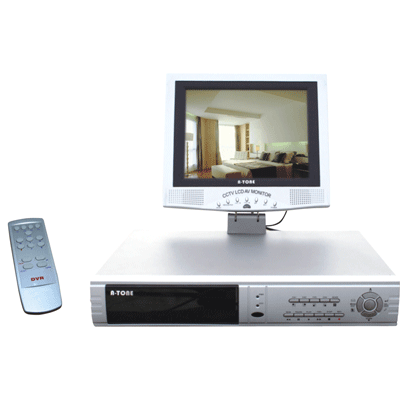

QR343 Features:
*Hi-resolution picture quality, support D1, 1/2D1, CIF format
*Manual, schedule, sensor activate, motion detect
*Time stream design, realize prompt& precision recording search
*Suppotr PC playback and backup via USB 2. 0 port
*Full hardware MJPEG Video compressing
*Light, Easy to remove
Video Input/Output: BNC 4-ch input/2-ch output(Composite)
Display Frame Rate: NTSC: 120fps PAL: 100fps
Recording Frame Rate(Quad Mode): NTSC: Max. 30 fps(Quad) PAL: Max. 25 fps(Quad)
Recording Frame Rate(Each Mode): NTSC: Max. 7. 5fps(Each) PAL: Max. 6. 25fps(Each)
Compression Format: Modified MJPEG
HDD Rack: Removable, supports up to 250Gbyte HDD
Recording Mode: Continuous, Motion Detection, Sensor activated
Recording Time: NTSC: 155 Hours with 120GB HDD @ 15fps PAL: 194 Hours with 120GB HDD @ 12 fps
Sensors, Alarm: 4 Input, 1 Output(10 Pin DIP Switch)
USB Port: 2. 0
Power Adapter: 5V DC/2A, 12V DC/2A
Dimension(LxWxH): 400x276x110mm
Net Weight: 7. 2kg
| Model No: | QR343 |
| Delivery Time: | 7~10dasy |
