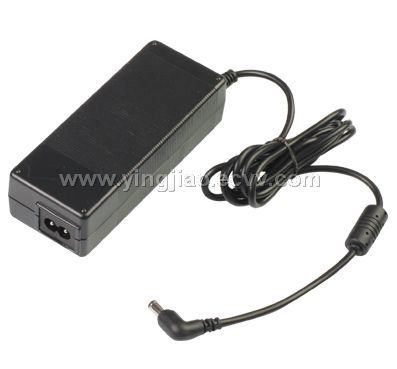

Power Adapter (YS90-XX480)

- 72-95W Switching Power Adapter/AC Adaptor
- Model: YS90-XX480
Features:
- Universal Input: 100-240V AC 50/60Hz
- Safety: UL/CUL/TUV/GS/CE/CCC compliance
- RoHS Compliance
- With PFC or without PFC optional
- High efficiency & low power consumption
- Short Circuit Protection
- Over Current Protection
- Over Voltage Protection
- Light Weight & Compact

Environmental:
- Operating Temperature: 0 ~ +40℃
- Storage Temperature: -40 ~+70℃
- Operating Humidity: 10% ~ 90% RH Non-condensing
- Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
- Dimensions: 126mm (L)*51mm (W)*34mm (H)
- N. W.: 240g
- AC Input Plug: EU, US, UK, AUS, etc. type optional
- Output plug: optional

Output Specifications:
- Output Load Voltage(V): 48
 - Max. Load Current(A): 1.50

Packing details:
- 1 piece per plastic bag + inner box
- 50PCS/CTN
- CTN Dimension: 34*31*37cm
