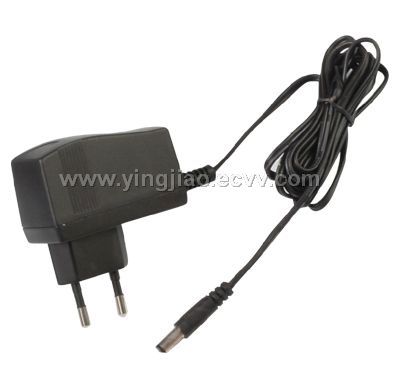

Switching Power Adapters (YS12)

* Model: YS12 series

* Features:

* Universal Input: 100-240V AC 50/60Hz

* Safety: UL/cUL/TUV/GS/CE/CCC compliance

* RoHS Compliance

* High efficiency & low power consumption

* Short Circuit Protection * Over Current Protection

* Over Voltage Protection

* Light Weight & Compact

* Environmental:

* Operating Temperature: 0 ~ +40 degrees centigrade

* Storage Temperature: -40 ~+70 degrees centigrade

* Operating Humidity: 10% ~ 90% RH Non-condensing

* Storage Humidity: 5% ~ 95% RH Non-condensing

* Mechanical:

* Dimensions: 65mm (L)*27mm (W)*39mm (H)

* N. W. :67g

* AC Input Plug: European 2 round pin, or US 2 flat pin optional

* Output plug: optional

* Output Specifications:

* Model Output Load Voltage (V) Max. Load Current (A)

YS12-XX240 24 0. 50

YS12-XX150 15 0. 80

YS12-XX120 12 1. 00

YS12-XX090 9 1. 20

YS12-XX075 7. 5 1. 50

YS12-XX060 6 1. 50

YS12-XX050 5 1. 50

XX-represent rated output power

* Packing details:

* 1 piece per plastic bag + inner box

* 100PCS/CTN

* G. W. : 8. 0KGS/CTN

* N. W. : 6. 7KGS/CTN

* CTN Dimension: 50(L)*24(W)*34(H)CM
