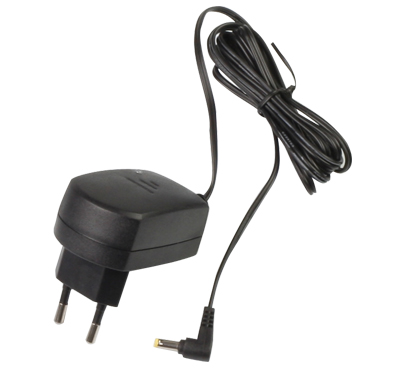

Switching Power Adapter (YS6)

Detailed Product Description

3-6W Switching Power Adapter (AC/DC Adapter)

Model: YS6 series
Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS Compliance
LED power indicator
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 ~ +40 degrees centigrade
Storage Temperature: -40 ~+70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 59mm (L)*39mm (W)*25mm (H)
N.W.:66g
AC Input Plug: European 2 round pin, or US 2 flat pin optional
Output plug: optional

Output Specifications:
Model Output Load Voltage (V) Max. Load Current (A)
YS6-XX150 15 0.35
YS6-XX120 12 0.40
YS6-XX090 9 0.50
YS6-XX075 7.5 0.50
YS6-XX060 6 0.80
YS6-XX050 5 1.00
YS6-XX045 4.5 1.00
YS6-XX042 4.2 1.00
YS6-XX030 3 1.00
YS6-XX028 2.8 1.00
XX-represent rated output power

Packing details:
1 piece per plastic bag + inner box
125PCS/CTN
G.W.: 9.25KGS/CTN
N.W.: 8.25KGS/CTN
CTN Dimension: 50(L)*24(W)*34(H)CM

Place of Origin:China|
Model No:YS6 series
Delivery Time:15
