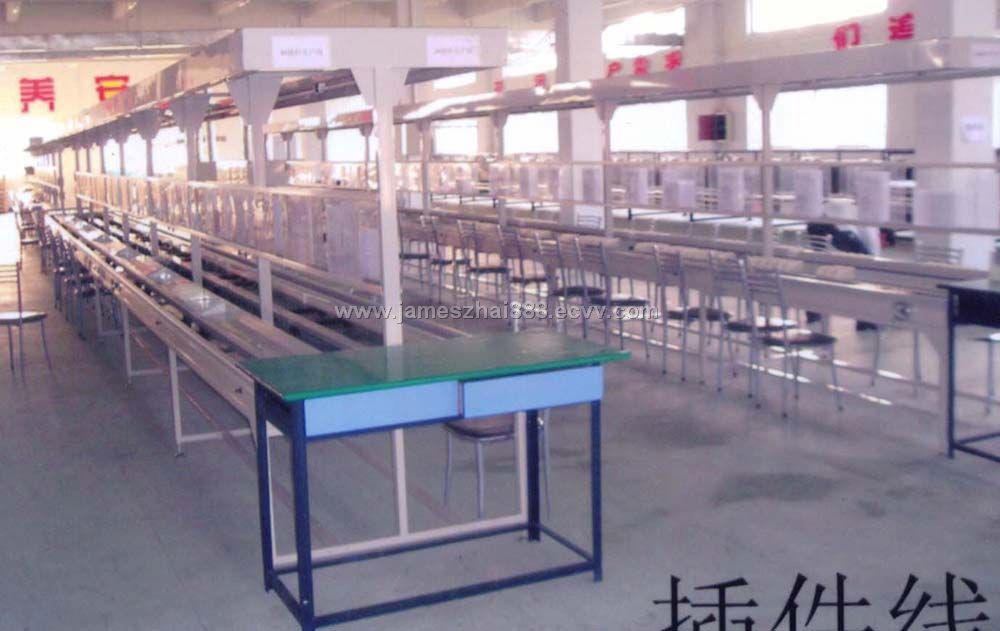

Electrical Component Insertion Line (BC1001)

1) Double working face.

2) Motor running.

3) The total line lenth: 8-20m, adjustable. one worker place/1 meter.

4) The line height: 1950mm, working height: 740mm

5) Material: aluminum track

6) Suitable pcb width: 50-300mm, change width method: by hand.

7) One 30w fluorescent lamp fixture /one worker place.

8) One material case for put component/ one worker place

9) Line frame material: 30x40 rectangle pipe

10) all line pipe: plastic coated. color: grey

11) Moving method: motor, speed: 0.3-1.8m/min.

12) If use conveyor, then can automatic connect with soldering machine.

13) Other: according to standard making
