Shanghai Mindong Mechanism Electron Co.,Ltd.

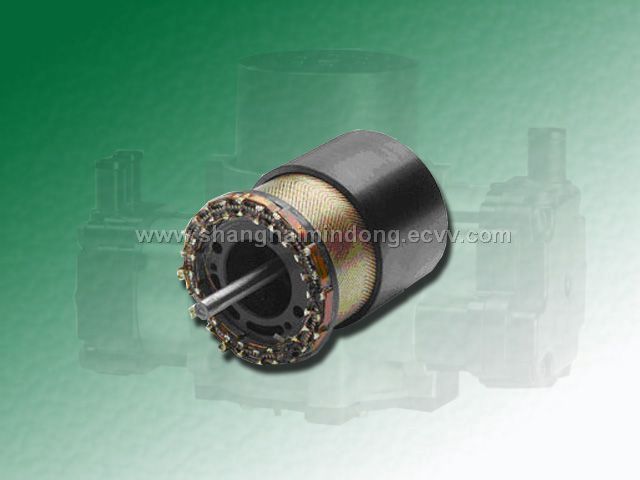

CP motor

Detailed Product Description

It offers variable speed from 1000 to 4000rpm
and offer 18% more efficiency and reduce 28% more weight compared with conventional motor.
Ideal parts for compressors, vacuum pumps, oxygen concentrator, medical device.
Unique geometry motor allows the rotor to be mounted directly to the air bearing shaft,
eliminating the use of ball bearing.
Without iron core, eddy current losses are eliminated.
Unaffected by temperature or water.
Specification
Peak torque: 3.18Nm
Peak current: 60A
Shaft power: 452W
Voltage: 48Vdc
No load speed: 4020 rpm
No load voltage: 24 V
Terminal resistance: 0.31ohms
Stator inductance: 20 microH
Electrical time constant: 0.065ms
Max rotor temperature: 70℃
Max Stator temperature: 110℃
Diameter: 49mm-52mm
Total motor weight: 595g
Place of Origin:Shanghai Shanghai in China
Model No:CP motor1
Brand Name:Mindong
